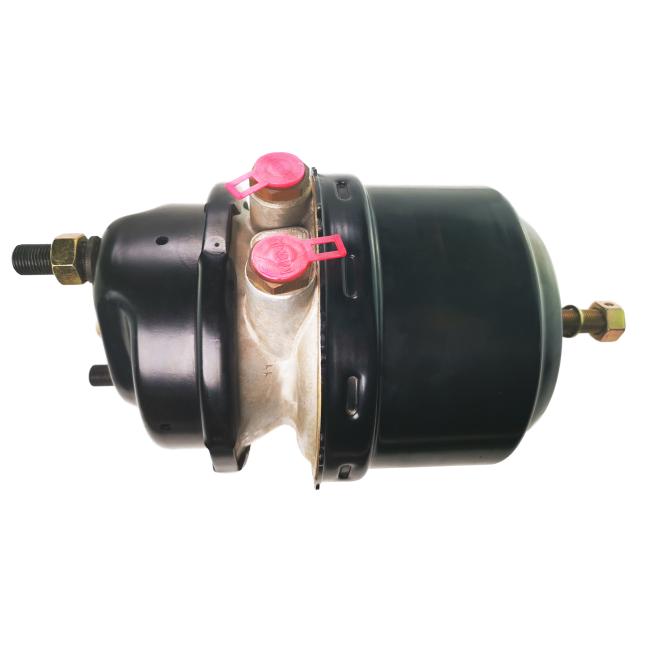

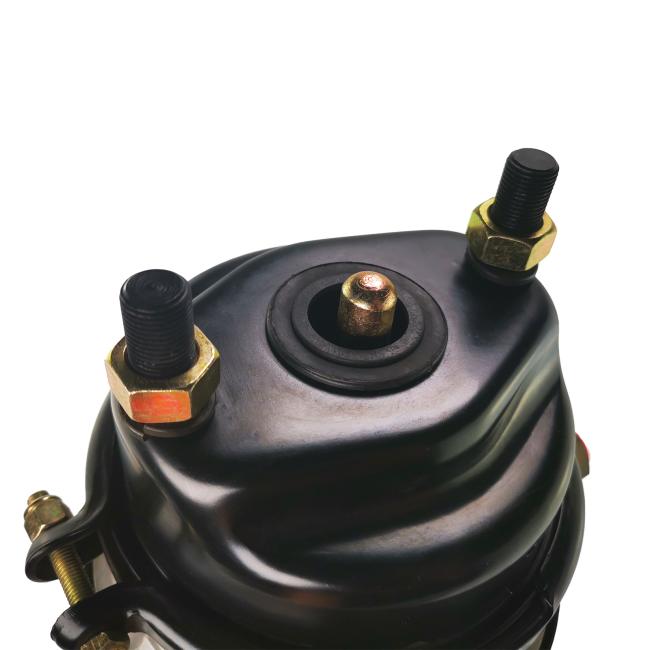

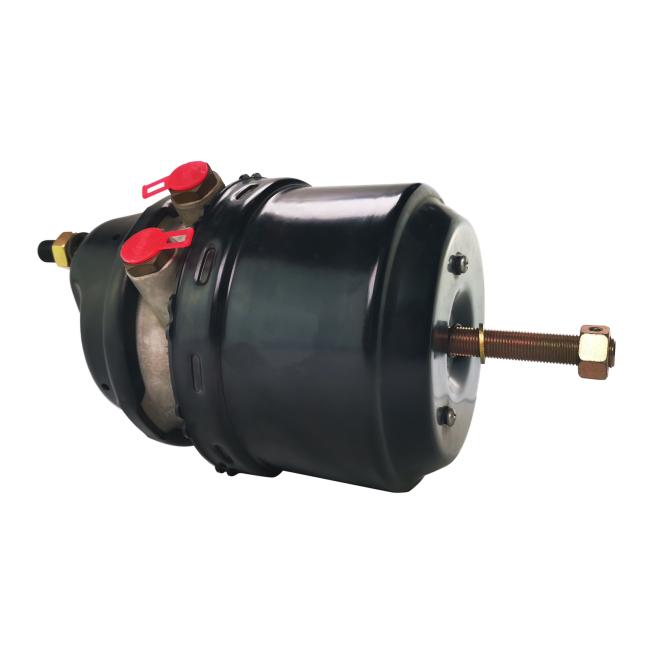

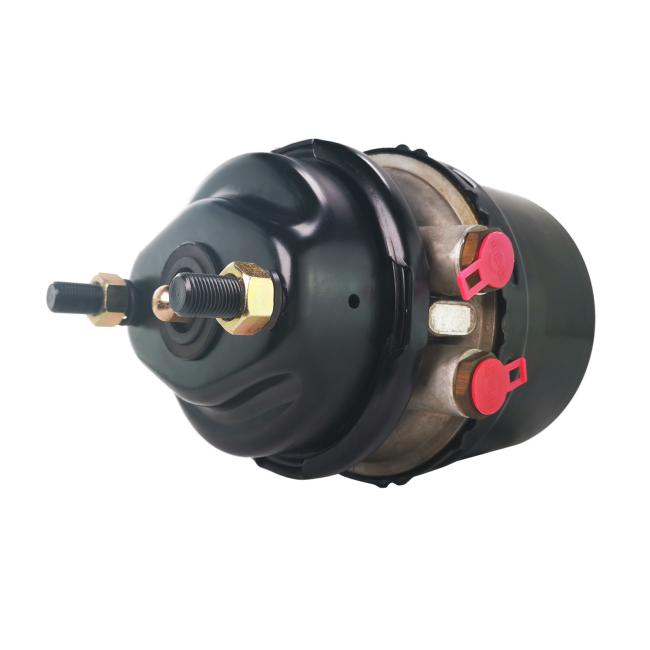

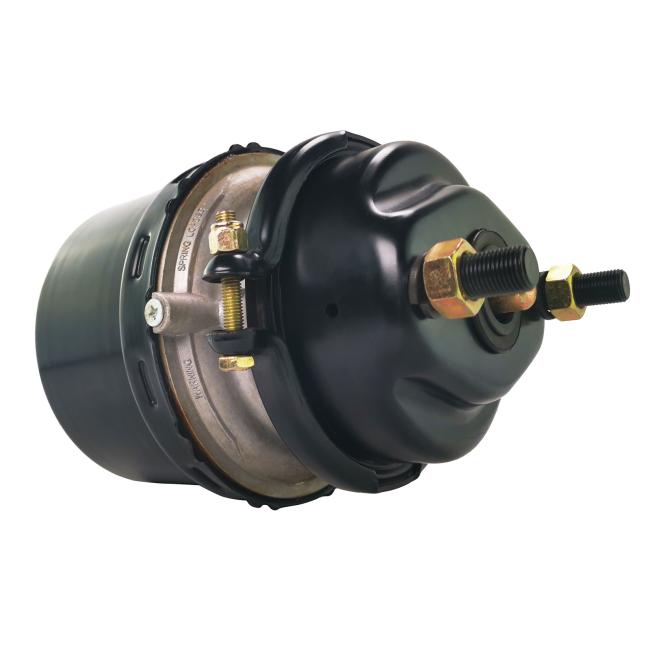

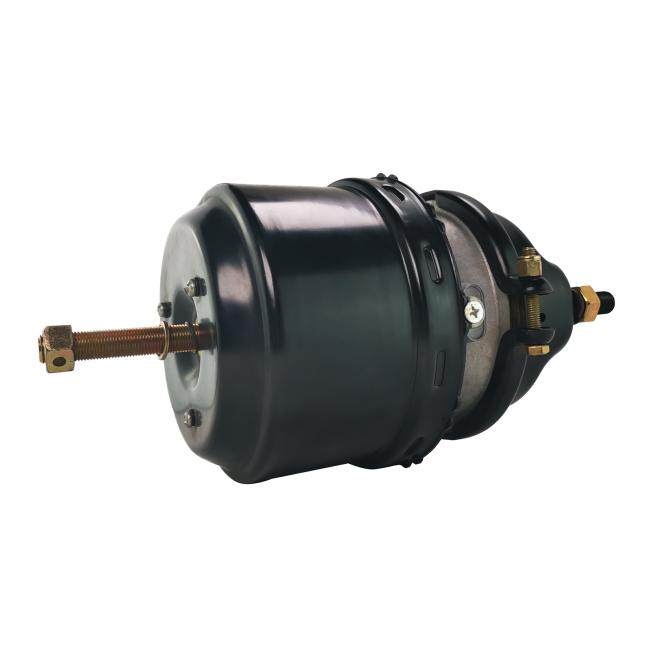

BS9304 9254840210 Type 1624 Brake Chamber For Mercedes Benz
Disc Spring Brake Chamber Type 1624 DP-DISC | OEM BS9304/9254840210 | For Mercedes Benz | For Axles With Disc Brakes
OEM QUALITY BRAKE CHAMBER T1624
Type 1624 Brake Chamber. 57mm stroke. For port and bolt thread, both inch and metric are optional.
| Working Pressure | 800KPa |
| Maximum Working Pressure | 1MPa |
| Pushrod Stroke | 0 - 57mm |
| Ambient Temperature | - 40 ~ +80°C |
| Surface Finish | 100hrs clear or yellow zinc plated, black powder coating |
| Service Time | ≥1,000,000 times |
| Life-time For Parking Chamber | ≥200,000 times |
Product Details

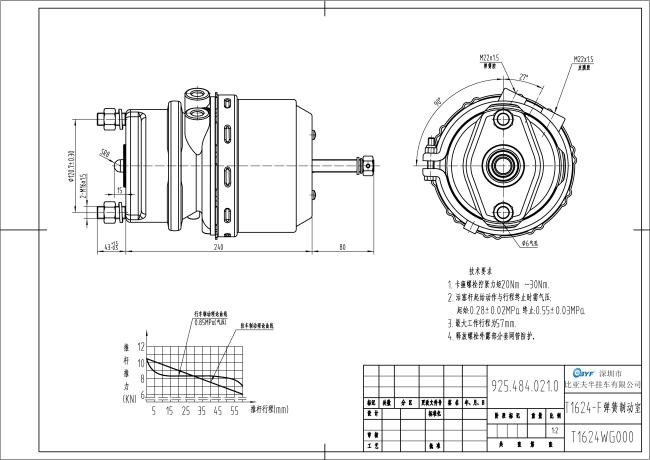

Drawing Details
Other Models For Your Choice
| T3030DD-L(SEALED) | T2424DCP | |
| T2430DD-L(SEALED) | T2024DCP | |
| T3030DD(SEALED) | T1624DCP | |
| T2430DD(SEALED) | T30 | |
| T3030DD | T24 | |
| T2430DD | T20 | |
| T2424DD | T16 | |
| T2024DD | T12 | |
| T1624DD | T9 | |
| T3030DP | T30-L | |
| T2430DP | T24-L | |
| T3024DP | T20-L | |
| T2424DP | T30-DISC | |
| T2024DP | T24-DISC | |
| T1624DP | T20-DISC | |
| T2430DP-DISC | T16-DISC | |
| T2424DP-DISC | T9/6200 | |
| T2024DP-DISC | T12/6200 | |
| T1624DP-DISC | T12/1200 |
Packing & Delivery
1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs
2. Neutral packing, brand packing, corrugated box
3. Or as your request packing brake chamber
Fatigue Testing
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
