5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
Stainless Steel 304 5-Lays Sintered Filter Element Water Treatment
Sintered Metal Filter Production Introduce
The robustness of design, that is provided by a fully welded metallic element or cartridge, is required to resist deterioration in harsh operating environments where the fluids present are aggressive, high temperatures are experienced or where the operating differential pressures are high.
For some filtration applications, the use of a conventional disposable polymeric cartridge may simply be environmentally unacceptable and the use of a re-cleanable cartridge will often give more cost effective filtration.
|
material
|
SS304, 316, 316L
|
|
filter diameter
|
15mm-300mm
|
|
filter length
|
5inch, 10inch, 20inch, 30inch
|
|
micron rating
|
0.1um-200um
|
|
end caps
|
DOE, SOE, 222, 226, BSP, NPT
|
|
filtration media
|
sintered wire mesh, sintered fiber felt
|
|
o-ring / gasket
|
PTFE/ EPDM/ Nitrile/silicone/ Viton
|
|
filtration area
|
0.04m²-0.75m²
|
|
working temperature
|
450℃
|
|
working pressure
|
1.5-2.5mpa
|
|
pressure drop
|
0.6-1.0mpa
|
|
application
|
*polyester, pre polymer, film filtration
*lithium battery, slurry filtration, paint, glue filtration *gas, steam filter, high temperature liquid, viscous liquid filtration *food and beverage filtration *pharmaceutical filtration |
|
welding
|
argon ARC welding, spot welding, laser welding, plasma welding
|
|
method operation
|
assembled in filter housing
|

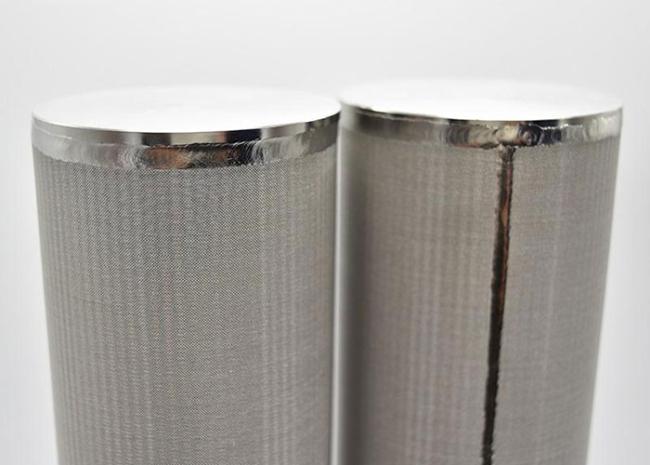

Sintered Metal Filter Picture
Sintered Metal Filter Feature
- Shape stability by self-supporting structure
- Suitable for high differential pressures
- Thermal stability up to 950°C
- High corrosion resistance
- High permeability and low Dp
- Defined filtration by exact pore size distribution
- Filters can be back flushed and cleaned easily
- Welding and machining are possible
