Durable Diamond Aluminum Expanded Stainless Steel Mesh Corrosion Protection
Factory Supply Durable Diamond Aluminum Expanded Stainless Steel Mesh
Description
Standard expanded metal, also known as raised expanded metal, is produced by simultaneously slitting and stretching metal sheets or coils. It features a surface of raised diamond-shaped openings. In addition, raised strands form an angle to the original plane of the solid sheet, adding additional strength and rigidity. It also delivers great anti-skid performance. As a result, it has virtually endless applications including road fences, platforms and stair treads, machine guarding, etc.
Specification
| Style | Minimum Thickness (inches)A | Nominal Weight in lbs./100 Sq. Ft.B |

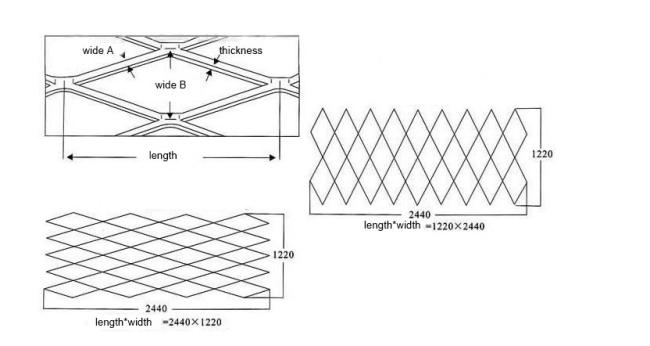

Design Size (inches)C | Opening Size (inches)C | Strand Size (inches) | Overall Thickness (inches) | Open Area | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Width | Thickness | |||||||
| ½"-#18 | 0.044 | 69 | 0.500 | 1.20 | 0.383 | 0.937 | 0.087 | 0.048 | 0.178 | 65% | ||
| ½"-#16 | 0.055 | 87 | 0.500 | 1.20 | 0.372 | 0.937 | 0.087 | 0.060 | 0.183 | 65% | ||
| ½"-#13 | 0.085 | 143 | 0.500 | 1.20 | 0.418 | 0.876 | 0.096 | 0.090 | 0.254 | 62% | ||
| ¾"-#18 | 0.044 | 46 | 0.923 | 2.00 | 0.790 | 1.750 | 0.106 | 0.048 | 0.212 | 77% | ||
| ¾"-#16 | 0.055 | 57 | 0.923 | 2.00 | 0.779 | 1.760 | 0.106 | 0.060 | 0.217 | 77% | ||
| ¾"-#13 | 0.085 | 87 | 0.923 | 2.00 | 0.751 | 1.687 | 0.107 | 0.090 | 0.232 | 77% | ||
| ¾"-#9 | 0.128 | 194 | 0.923 | 2.00 | 0.666 | 1.562 | 0.160 | 0.135 | 0.347 | 65% | ||
| 1½"-#16 | 0.055 | 43 | 1.33 | 3.00 | 1.179 | 2.750 | 0.115 | 0.060 | 0.234 | 83% | ||
| 1½"-#13 | 0.085 | 65 | 1.33 | 3.00 | 1.152 | 2.625 | 0.115 | 0.090 | 0.246 | 83% | ||
| 1½"-#9 | 0.128 | 130 | 1.33 | 3.00 | 1.077 | 2.500 | 0.155 | 0.135 | 0.338 | 77% | ||
Pictures
About Company
Packaging logistics
FAQ
Q1. How can we get the quotation of flter cartridges
A: Kindly please let us know the specifications, such as the material, length, micron, adapter, apply in which industry.
Q2. How about your delivery time?
A: Generally, it will take 20 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order. and if the item was non standard, we have to consider extra 10-15days for tooling / mould made.
Q3. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
