Plain Dutch Twill Stainless Steel Filter Mesh For Filtration Ultrafine Mesh

Plain dutch twill stainless steel wire mesh for filtration Ultrafine mesh

Stainless Steel Filter Mesh Product Introduction

Wire diameter:0.025mm-1.8mm

Apeature: 0.038mm-10.9mm

Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.

Roll length:30m or 50m,any length available at request.

Stainless Steel Filter Mesh Production Process

Sample:Free sample sent on request. Performance : Corrosion-resisting, Wear-resisting, Tear-resisting. Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc.

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

Stainless Steel Filter Mesh Application

1. it is used for screening and filtering under the conditions of acid and alkali environment. The oil industry is used for

mud screen, chemical fiber industry is used for screen, electroplating industry is used for pickling screen.

2. It is used for screening and filtering under acid and alkali environment, mud screen for oil industry, chemical fiber

industry, screen screen electroplating.

3. for mining, petrochemical, food, medicine, machinery manufacturing and other industries...

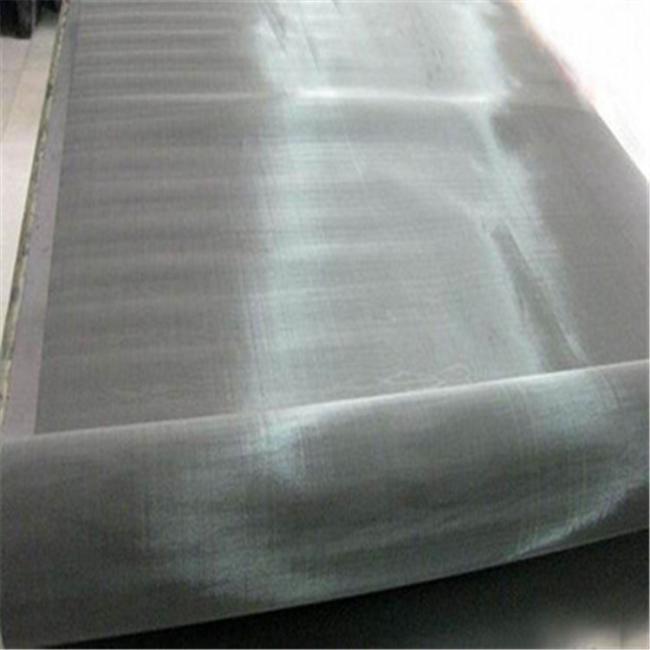

Stainless Steel Filter Mesh Product Pictures
