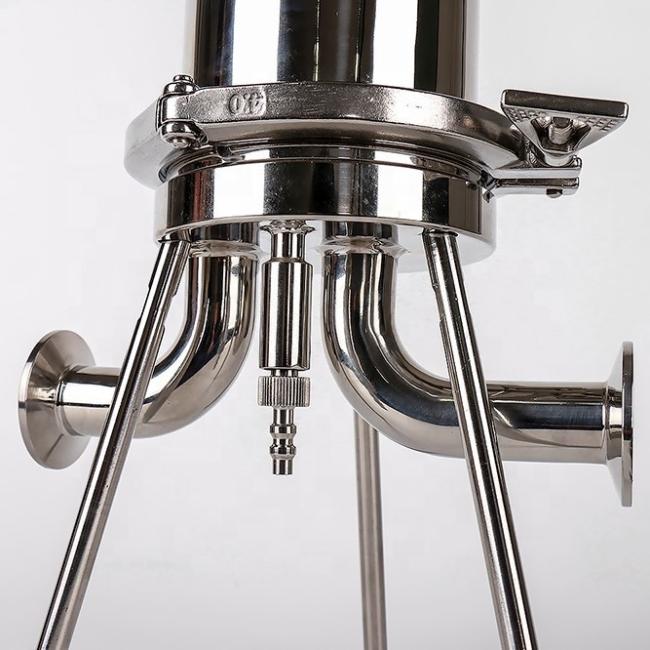

Lenticular Sus Multi Bag Cartridge Filter Housing

Product Overview:
Overview: The qin Bar filter shell is made of SUSS304 / SUS316L high quality stainless steel, the surface is mechanical or electrochemical polishing treatment, generally used for intermediate filtration.Filter element is metal powder sintered filter element with high precision, high temperature resistance, corrosion resistance, high mechanical strength.
Barrel material: SUS304, SUS316, SUS316L
Design pressure: 0.35 to 0.6mpa
Design flow rate: 0.5-12m3 /h
Interface form: quick mounting, flange
Operating temperature: 230 ℃
Filter elements: insert type 226, insert type 222
Disk structure: movable/fixed
Filter element size: 10 inches, 20 inches, 30 inches, 40 inches
Sealing material: eye glue, silica gel, fluorine glue, epdm rubber, PTFE
Surface treatment: tube mirror polishing, mechanical or electrochemical polishing
Application Scope:
Suitable for food and beverage, water treatment, petrochemical, electronic industry, pharmaceutical industry, automobile, paint and coating, textile industry and other impurities and water filtration.

A. Filtration, separation and purification of air, gas, solid and oil liquids
B. Noise reduction, sound elimination and pressure adjustment
C. Uniform and divergent (gas, oil, heat, water mist), penetration, cooling, heat transfer, ventilation and moisture resistance
D. Production process of chemical industry, petroleum, chemical fiber, medicine and food
E. Dust removal, dust isolation and dust prevention
F. Powder treatment, solid boiling, stable fluid
G. Sampling and protection of measuring and analytical instruments
H. Use of medical equipment, machinery and equipment
I. Application of environmental protection industry and filter equipment
J. Filtration and purification of high temperature, high pressure, high impact, acid and alkali corrosive environment
