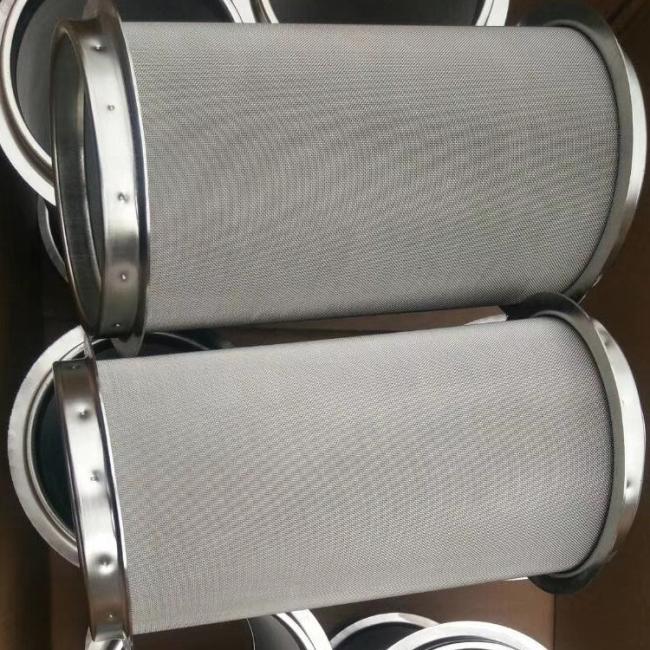

Water Filtration Tube 50 Micron 150mm Length Fine Filter Mesh
water filtration 50micron stainless steel wire mesh filter tube
|
Product Details
|
material | SS304 |
| Filter diameter | 1inch, 2inch or others can be customized | |
| Filter length | 7inch, 9inch, 10inch others can be customized | |
| filtration rate |
1-500 micron ; 25 50 75 micron common size |
|
| end caps | None, ring, 222-swing, 226-swing, SOE/DOE/M series/BSP series/ NPT series | |
| filtration media | woven filter mesh | |
| O-ring / Gasket | PTFE/ EPDM/ Nitrile/silicone/ Viton | |
| filtration Area | 0.04m²-3.5m² | |
| working tem | 450℃ | |
| working pressure | 1.5-2.5mpa | |
| pressure drop | 0.6-1.0mpa | |
| application |
* Petroleum chemical industry * oil field pipeline filter * fuel refueling equipment filter * water treatment equipment filter * Beer and water treatment equipment filter * pharmaceutical and food processing field |
|
| welding | argon ARC welding, spot welding, laser welding, plasma welding | |
| method operation: | assembled in filter housing, PLC,Bearing, Gear box, Motor, Pressure vessel, Gear, Pump | |
|
characteristics: |
* Oxidation and corrosion resistant. * Acid and alkali resistant * Long service life * Big pressure resistant |
Other material and size are also available
- Material: black wire mesh, SS201, SS304, SS310, SS316, SS316L, SS904, SS904L, Duplex 2205, Duplex2207, Hastelloy C-276, Monel 400, Inconel600, Inconel625, Inconel825
- Filter media: black wire mesh, stainless steel woven mesh, copper woven mesh, welded mesh, crimped mesh, expanded mesh, perforated mesh, etching mesh, sintered wire mesh, sintered porous
- Filter tube size: 1" x 7" ,1" x 9" , 2 x 10 inch , others can be customized
| Service | OEM and design department |
* common size, * customerized size * design make drawing |
| sales team | fast reply in 24hours | |
| quality department | Bubble point test + PMI chemical material composition test | |
| quality warranty | 1 Year for machinery warranty | |
| Shipment way |
* by air, * by international express, * by sea * by train |
|
|
Package way |
plastic cushion film + wooden case |
|
Anping County Jineng metal Wire Mesh Products Co., Ltd. was established in 2008. Our company is located in Anping County of Hebei Province. We have more than 50 employees, including more than 10 professional technical personnel and senior engineers. Our main products are porous metal sintered materials, sintered mesh filter, pleated filter cartridge, filter disc, conical filter, hydraulic filter, barbecue mesh, fume filter, tea coffee filter, perforated mesh. We are production-oriented enterprises which is specialized in environmental protection, water treatment, chemical and other filtration equipment and accessories.
