1 Micron 5 Layers Sintered Mesh Filter Disc Stainless Steel
1 Micron 5 Layers Stainless Steel Filter Disc
Stainless Steel Filter Disc Description

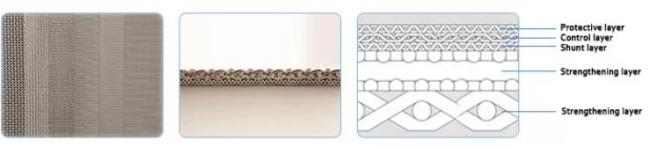

Stainless Steel Filter Disc is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh.
Stainless Steel Filter Disc Specification
Material: titanium powder, stainless steel powder.
Filter medium: titanium powder sintering, 316 powder sintering.
Outer diameter: 10mm, 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, etc
Wall thickness: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, etc
Length: 10 ", 20 ", 30 ", 40 ".
Connectors: DOE, SOE, Tyre lever, screw (NPT, BSP, metric), flang
| Usage | Solid Filter |
| Material | 304 316 316L |
| Filter Rating | 45% |
| Length | Standard or customized |
| Warranty | 1.5 years |
| Type | Filter Disc |
| Thickness | Standard or customized |
Stainless Steel Filter Disc Advantage
The shape is stable.
High filtration efficiency.
High permeability fiber.
High mechanical strength, good integrity.
Excellent resistance to corrosion, heat, pressure and wear.
Uniform distribution of pore catalytic recovery for accurate filtration.
Good permeability.
Suitable for ultra low temperature, high temperature.
It can be reused after cleaning.
Long service life.
Conditions of Use:
Liquid and gas filtration can be performed in the temperature range of -200-1000°C.
Model specification
