Ss Sintered Wire Mesh Air Filter Backwash Perforated Bushfire Homes Balcony Protecting
Bushfire Homes Balcony Protecting Ss Mesh Air Filter Backwash Sintered Perforated Mesh
The Description Of Sintered Perforated Mesh
Sintered perforated mesh, also called sintered mesh from perforated metal, is made of several layers of stainless steel wire meshes and one perforated metal layer. Typical sintered perforated mesh includes five layers: perforated layer, buffer layer, fine mesh layer, protective layer and filter layer, and perforated metal as reinforcement layer supports the filter structure. Featured by high mechanical strength and filtration precision, sintered perforated mesh is widely used in various industries where the particles need to be filtered under extremely high pressure environment.
The Specifications Of Sintered Perforated Mesh
On a general scale, the specifications of the 5-layer sintered wire mesh include the following.
Material: stainless steel 304 L, 304, 316, 316 L, Monel, Alloy Steel Hastelloy, Nickel, bronze, and Inconel.
Porosity: 37%
7mm standard thickness
5 – 300μm filtration accuracy
-200º C – 600ºC operating temperature
| Usage | Solid Filter |
| Material | 304 316 316L |
| Filter Rating | 45% |
| Length | Standard or customized |
| Warranty | 1.5 years |
| Type | Filter Disc |
| Thickness | Standard or customized |
The Advantage Of Sintered Perforated Mesh
High strength and stability.
High filtration precision.
Corrosion and rust resistance.
High temperature resistance.
Easy to fabricate and clean.
The Benefits Of Sintered Perforated Mesh
The benefits of a 5-layer sintered wire mesh are quite a hand full. So, let’s see what they are;
The 5-layer sintered wire mesh does not rust due to its anti-corrosion properties
Flexible usages, since it is suitable for stretching, bending, welding, punching, and cutting
The 5-layer sintered mesh has a durable life span due to its high strength. Hence you use it for a long time.
High viscosity and pressure environment does not limit the filtration performance of the 5-layer sintered wire mesh
Consistent and reliable filtration accuracy since its filtration granularity ranges from 1-100μm
Since it has two protective layers, its filter mesh cannot lose shape(i.e., deform)
The 5-layer sintered wire mesh is very easy to clean
Resist high temperatures
You can easily customize the 5-layer sintered wire mesh to suit several operations
The 5-layer sintered wire mesh is very economical

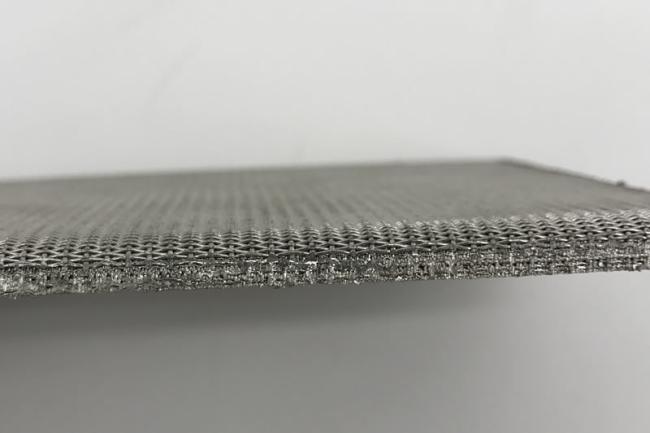

Product Show of Sintered Perforated Mesh
