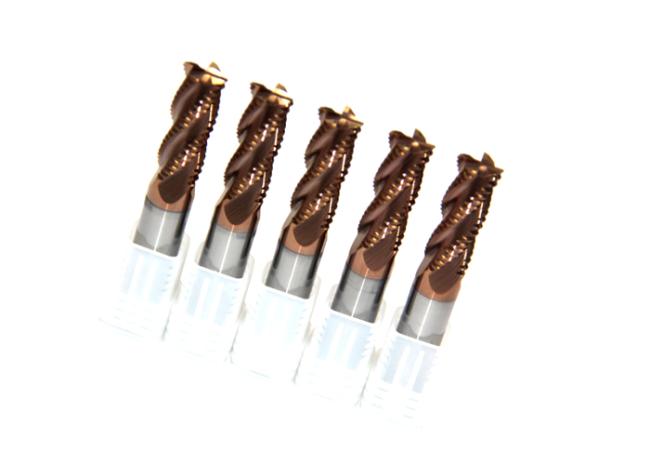

Tungsten Carbide Aluminum Roughing End Mill For Stainless Steel Metal
Tungsten Carbide Aluminum Roughing End Mill For Stainless Steel Metal
Specifications:
B600 corrugated roughing milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 3900mpa, grain size: 0.8 μm. There are two categories for aluminum and steel respectively. The roughing milling cutters for steel are coated by imported coating equipment (black / Bronze). The cutter adopts special process design (coarse, medium and fine teeth), especially suitable for aluminum, copper, ordinary medium or low carbon steel, alloy steel and other materials processing, to achieve large margin, fast forward, improve the processing efficiency. With high precision quality control, and full inspection, all B600 series end mills are delivered with 100% qualification rate.
| Raw Material | YL10.2 /K30 |
| WC | 90% |
| Co | 10% |
| TRS | >3900N/mm2 |
| Hardness | >91.5HRA |
| A.O.L | 50mm-150mm |
| Grain size | 0.8 μm |
| Upto | HRC55 |
| Flutes No | 4F |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(UM): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Standard Sizes
| Size | Flute Length |
| D3*8*D4*50 | 8 |
| D4*10*50 | 10 |
| D5*13*50 | 13 |
| D5*12*D6*50 | 12 |
| D6*15*50 | 15 |
| D6*18*75 | 18 |
| D6*24*100 | 24 |
| D8*20*60 | 20 |
| D8*24*75 | 24 |
| D8*35*100 | 35 |
| D10*25*75 | 25 |
| D10*40*100 | 40 |
| D12*30*75 | 30 |
| D12*45*100 | 45 |
| D14*40*100 | 40 |
| D16*45*100 | 45 |
| D16*65*150 | 65 |
| D18*45*100 | 45 |
| D20*45*100 | 45 |
| D20*80*150 | 80 |
