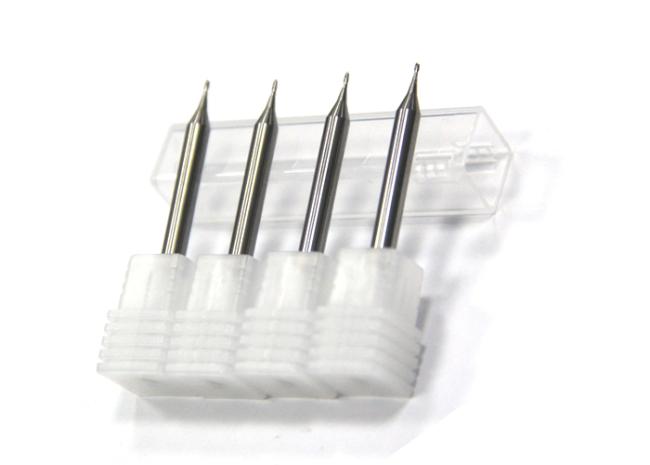

Micro Spiral End Mill Tungsten Carbide Spiral Endmills Two Flutes Right Spiral End Mill
Micro Spiral End Mill Tungsten Carbide Spiral Endmills Two Flutes Right Spiral End Mill
Specifications:
V600 adopts high-quality high-quality ultra-fine grain tungsten steel material at home and abroad, with bending strength of 4500mpa and grain size of 0.2μm, including micro diameter milling cutter special for steel or aluminum, coating or no coating. The coating adopts AlTiN or TiSiN imported from Switzerland. Micro diameter milling cutters are all made of high-precision five axis grinding machines, such as ROLLOMATIC of Switzerland and MICRO of Germany, to ensure the accuracy of the cutters. With high precision quality control, and full inspection, all V600 series end mills are delivered with 100% qualification rate.
| Raw Material | AF308/510 |
| WC | 88% |
| Co | 12% |
| TRS | >4500N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm |
| Grain size | 0.2μm |
| Upto | HRC60 |
| Flutes No | 2F |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(μm): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Standard Sizes:
| Size | Flute Length of End Mills(mm) |
| D0.2/R0.1*D4*50 | 0.4 |
| D0.3/R0.15*D4*50 | 0.6 |
| D0.4/R0.2*D4*50 | 0.8 |
| D0.5/R0.25*D4*50 | 1 |
| D0.6/R0.3*D4*50 | 1.2 |
| D0.7/R0.35*D4*50 | 1.4 |
| D0.8/R0.4*D4*50 | 1.6 |
| D0.9/0.45*D4*50 | 1.8 |
| D0.35*D4*50 | 0.7 |
| D0.45*D4*50 | 0.9 |
| D0.55*D4*50 | 1.1 |
| D0.65*D4*50 | 1.3 |
| D0.75*D4*50 | 1.5 |
| D0.85*D4*50 | 1.7 |
Packing & Delivery
Packing of Custom tungsten carbide end mills
1> One piece in a platic pipe, 10 pieces per group.
2> Use the air bubble paper to encase the plastic pipe.
3> Put the goods encased with air bubble paper in the carton.
4> Other packing will be accept according to your needs
