Tungsten Carbide Slot Milling Cutter T Slot Carbide End Mill With Customized
Tungsten Carbide Slot Milling Cutter T Slot Carbide End Mill With Customized
Description
Specifications

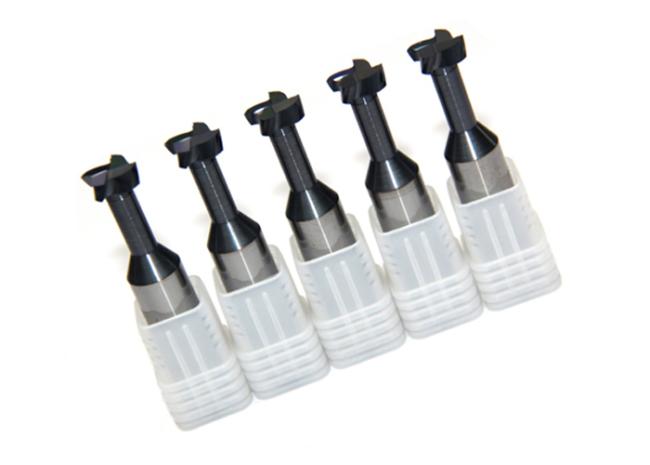

T600 T-Slot milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, particle size: 0.8 μm. There are two categories for aluminum and steel respectively. T-Slot milling cutter for steel is coated by imported coating equipment (black / copper), specially suitable for aluminum, copper, ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all T600series end mills are delivered with 100% qualification rate.
| Material | YL10.2 / K30 |
| WC | 90% |
| Co | 10% |
| TRS | >4100N/mm2 |
| Hardness | >92HRA |
| Cutting diameter | 1-20mm |
| A.O.L | 50-100mm |
| Grain size | 0.8 μm |
| Helix angle | 30° |
| Upto | HRC60 |
| Flutes No | 4 Flutes |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV) | 3200 | 3600 |
| Thickness(μm) | 2.5-3 | 3 |
| Oxidation temp(°) | 900 | 1000 |
| Friction coeffient | 0.3 | 0.45 |
| Color | Black | Copper |
Standard Sizes
| Name | Size | Slot Thickness |
| T-Slot End Mills/Milling cutters | φ3*φ4*50-4T | 0.5/1/1.5/2 |
| φ4*50-4T | 0.5/1/1.5/2 | |
| φ6*50-4T | 0.5/1/1.5/2/2.5/3 | |
| φ8*50-4T | 0.5/1/1.5/2/2.5/3 | |
| φ10*60-4T | 1/1.5/2/2.5/3/4/5 | |
| φ12*60-4T | 1/1.5/2/2.5/3/4/5 |
Changzhou Xinpeng Tools Manufacturing Co., Ltd is a professional enterprise which specializes in the design, manufacture, and sale of solid carbide cutting tools. In recent years, Xinpeng Tools has introduced advanced CNC grinding machines from Australia ANCA and Germany Michel Deckel, what’s more, advanced tool test instrument from Germany Eouer has been introduced.
We mainly manufactures solid carbide milling and turning tools, drilling tools, special tools for PCD area, meanwhile, varieties of non standard cutting tools can be designed for the clients. All the products are widely applied in the area of machinery processing, like automobile, mould, plastic and so on.
Xinpeng Tools is always in the aim of “Survive from the quality, develop from the prestige”. With the best quality, the competitive price and the best attitude of service, North people believe they can fly further!
