Pebbles Ceramic Ball Mill Glaze Kaolin Wet Grinding Ball Mill Fine Grinding
Ceramic Ball Mill Used For The Fine Grinding Of Ceramic Raw Materials, Glaze, Kaolin, Etc.

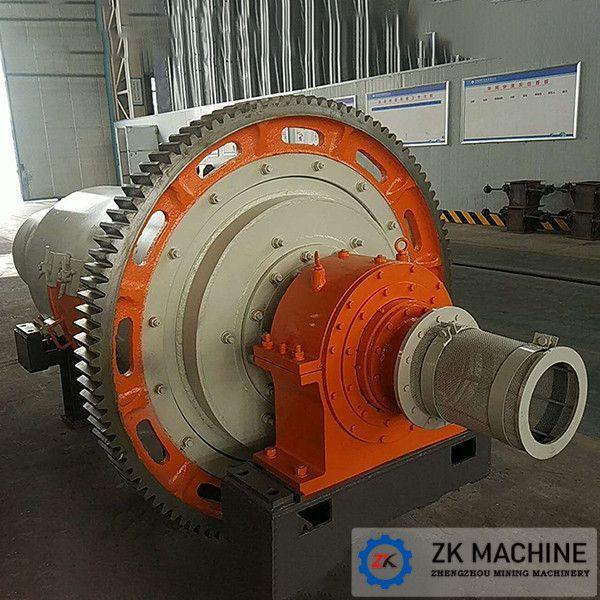

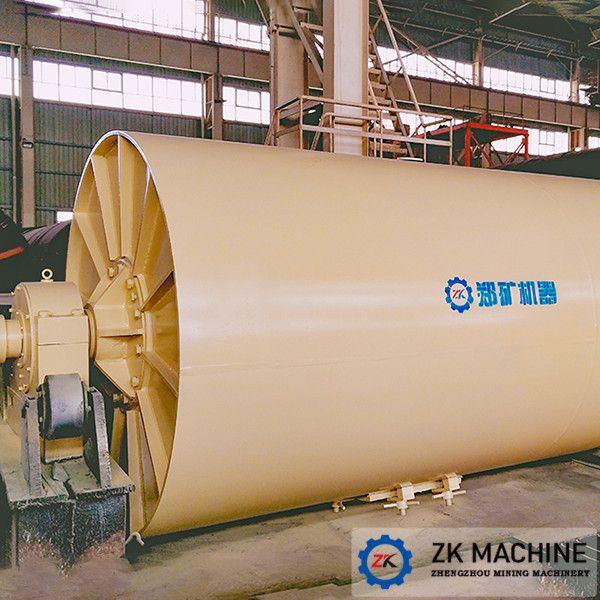

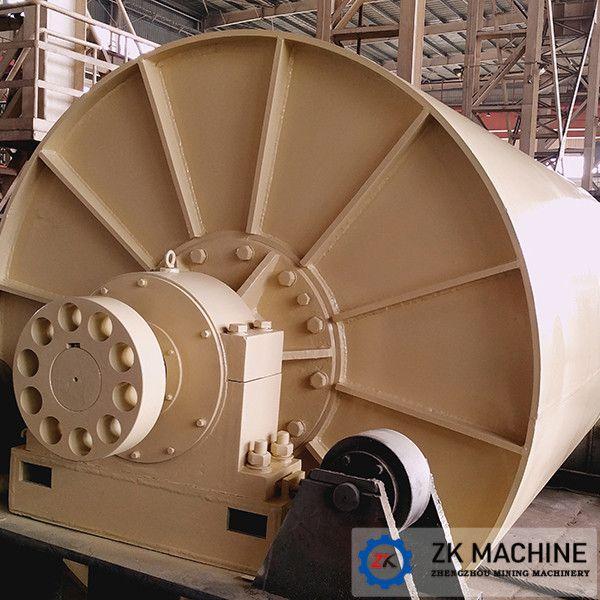

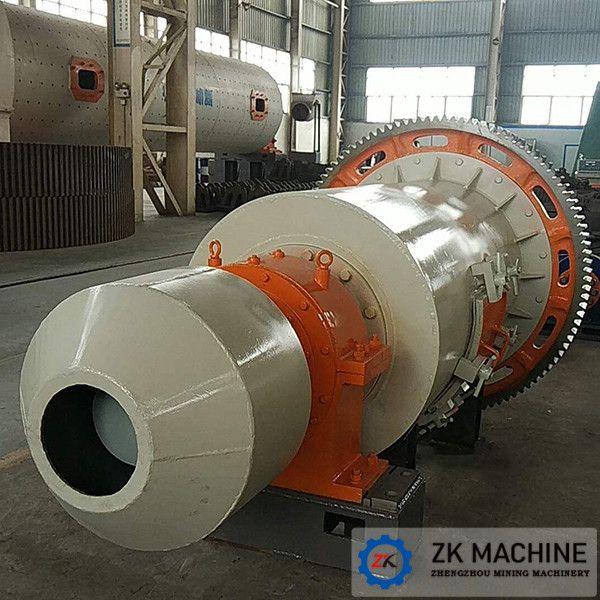

Ceramic Ball Mill Description
Batch type ceramic ball mill (intermittent ball mill) is a kind of ceramic lined ball mill, which can be used for dry and wet for the fine grinding of ceramic raw materials, glaze, pebbles, kaolin, ore and other raw materials.
Application
Ceramic Ball Mill(Batch type ball mill) is mainly used for mixing of the material, grinding, the fineness of the product is uniform, saving power. Both dry grinding, wet grinding can also be. The fineness of the grinding operation, relying on the polishing time control themselves.
Outstanding Advantages
1. It is suitable for mixing and milling of general and special materials. Users can choose the proper model, lining board and media as per the factors, such as: materials specific gravity and hardness, as well as output, etc.
2. It can be used for wet or dry grinding, finished slurry can pass 1000 mesh screen. The fineness of grinding material depending on milling time.
3. Lower investment, energy saved, novelty structure, easy and safe to operate, stable and reliable performance, etc.
4. Different liners and grinding media can be used to meet different requirements. Motor Auto decompression start to reduce the starting current, and its structure is divided into integral independent.
Ceramic Ball Mill Specifications
| Model | Loading Capacity (tons/time) | Rotating Speed (r/min) | Reference Power (kW) |
|---|---|---|---|
| 600×700 | 0.05 | 50 | 2.2 |
| 800×600 | 0.075 | 42 | 3 |
| 900×1200 | 0.2 | 38.5 | 5.5 |
| 1300×1500 | 0.5 | 33 | 7.5 |
| 1500×1800 | 1.2 | 28.5 | 11 |
| 1800×2000 | 1.5 | 24 | 15 |
| 2600×2800 | 5 | 16.5 | 37 |
| 3000×3800 | 10 | 14.5 | 57.2 |
| 3200×4600 | 15 | 13.5 | 75 |
Project Cases
1. Ø 2.0x3.4m Ceramic Batch Mill Project in Malaysia
2.Ceramic Batch Mill Project in Russia.
3. Ceramic Batch Mill Project in Bolivia
etc.
