Long Distance Screw Conveying Equipment Easy Maintenance For Electric Power Industry
Long Distance Screw Conveyors / Screw Conveyor Easy to Maintain
LS Type Screw Conveyor Introduction:
Screw conveyor, used in electric power, chemical industry, metallurgy, coal, machinery, light industry:
LS type screw conveyor is international standard product, equivalent accord with the ISO1050-75 standard, design and manufacture accord with professional ZBJ1005.1-2-88 standard. Its advanced technical indicators, the structure is novel,it is our country in the ninety s to replace the replacement of the GX type screw conveyor.
LS type screw conveyor in the scope of application: screw machine is widely used in various industrial sectors, such as building materials, electric power, chemical industry, metallurgy, coal, machinery, light industry, food and food industry. The conveyor used to transport dry ash.

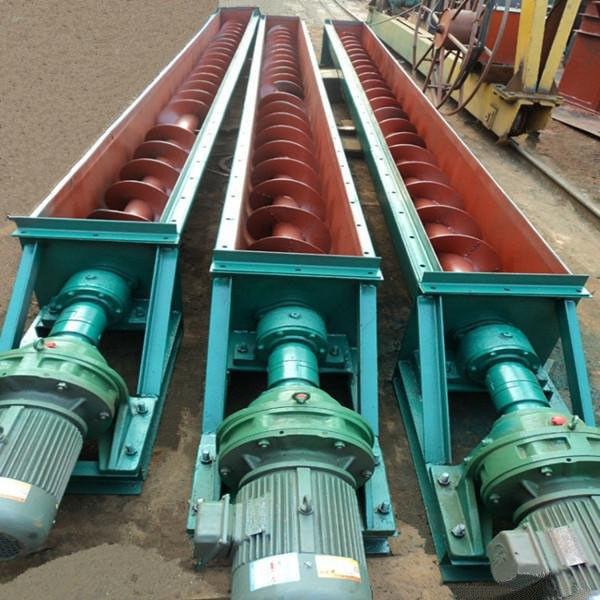

LS Type Screw Conveyor Structure:
LS series screw conveyor is mainly composed by screw, chute, hanging bearings, driver, supports, inlet and outlet. The main structural characteristics of each part are:
1. The head and tail bearing are arranged outside the chute. It avoids dust entering the bearing and convenient to install and maintain;
2. The optimized screw solved the material blocking problem at the outlet;
3. The screw shaft use reducing structure. It increases the volume at hanging bearings to reduce the wearing by the friction between bearing and material;
4. The screw shaft and hanging bearing connection applies embedded structure. There's no axial movement during mount and dismount. Thus it is convenience to maintain and repair;
5. The hanging bearing structure is compact and the dimension of axial and radial dimensions is small. It can avoid the material stuck and blocking;
6. The hanging bearing has improved sealing and lubricating structure. It help the bearing protection and lubrication effectively and can significantly increase its service life;
7. The hanging bearing is fixed at screw shaft connections of each segment. It can ensure the concentricity of the screw shaft while increasing its overall stiffness.
Specifications:
| Model | Screwdia(mm) |
Pitch (mm) |
Max Rev.Speed (r/min) |
Capacity(m³/h) | Conveying Distance(m) |
| LS200 | 200 | 200 | 50～90 | 7～12 | 2～15 |
| LS250 | 250 | 200 | 45～90 | 10～20 | 2～20 |
| LS300 | 300 | 300 | 40～80 | 15～30 | 2～20 |
| LS400 | 400 | 300 | 35～70 | 25～55 | 2～25 |
| LS500 | 500 | 400 | 35～65 | 45～90 | 2～25 |
| Wearing Parts List: | |||||
| No. | Name | Quantity | |||
| 1 | Flight | 1 | |||
| 2 | Bearing | 2 | |||
| 3 | Nylon Pin | 8 | |||
Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
Packaging Detail :
The main machinery is in nude packing and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
