Commercial upright glass door freezer, auto defrost frozen food display refrigerator
Commercial upright glass door freezer, auto defrost frozen food display refrigerator
The glass door freezer is specially for business supermarkets and convenience stores. The product adopts a luxurious appearance design. The wide and wide transparent tempered coated glass sliding door + transparent windows can effectively prevent the loss of cold energy and make it clear The food in the display cabinet attracts consumers' attention and stimulates consumer desire; it adopts broadband climate design to meet the different environmental needs of users.
Specification
| Model | DGD620-1M | DGD1250-2M | DGD1880-3M | DGD2500-4M |
| Unit Size | 620×735×2090mm | 1250*735*2090mm | 1880×735×2090mm | 2500×735×2090mm |
| Capacity | 500L | 1000L | 1500L | 2000L |
| N-ST | 32℃ | 32℃ | 32℃ | 32℃ |
| Temperature | -18℃~ -22℃ | -18℃~ -22℃ | -18℃~ -22℃ | -18℃~ -22℃ |
| Refrigerant | R290 | R290 | R290 | R290 |
| Evaporator type | skin | skin | skin | skin |
| Evaporator material | copper pipe | copper pipe | copper pipe | copper pipe |
| Condenser type | skin | skin | skin | skin |
| Condenser material | copper pipe | copper pipe | copper pipe | copper pipe |
| Compressor type | Secop/Embraco | Secop/Embraco | Secop/Embraco | Secop/Embraco |
| Temperature control | Digital | Digital | Digital | Digital |
| Drainage type | automatic drain-water evaporating | automatic drain-water evaporating | automatic drain-water evaporating | automatic drain-water evaporating |
| Cabinet material | Painted steel | Painted steel | Painted steel | Painted steel |
| Door type | Glass heater | Glass heater | Glass heater | Glass heater |
| Lighting | Blue, white, yellow | Blue, white, yellow | Blue, white, yellow | Blue, white, yellow |
| Shelf | 5 | 5 | 5 | 5 |
This model of display cabinet can also be assembled into a refrigerator, temperature range: 2~8°C. If you are interested, please contact me to check the catalog.
Main features
Especially designed for drink and food storage and display, freshness inside is visible;
Bottom mount refrigeration system;
Intensive circulating design, more quick and even freezing, built-in fan design for more storage space;
Polyurethane insulation in all walls and ceilings;
Temperature range: -18℃~ -22℃;
Defrosted glass door, door frame with heater;
Automatic drain-water evaporating, Design of water outlet hose and water tray keep it clean and dry;

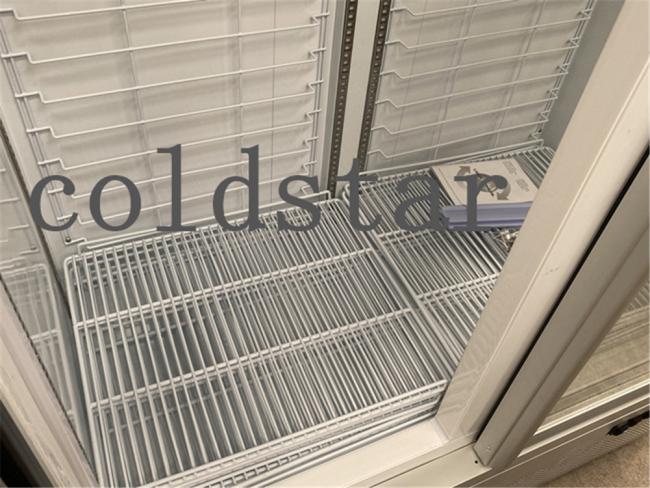

Adjustable shelves for the storage of different size of food;
Lamp in light box and lamp on the top of inner cabinet optional: Blue, yellow, white;
ISO9001, CE and RoHS approvals available;
2 years compressor warranty, 1 year parts warranty.
Details description
|
Main Parts Skin type of Evaporator. Embraco/Secop compressor optional. |
 |
 |

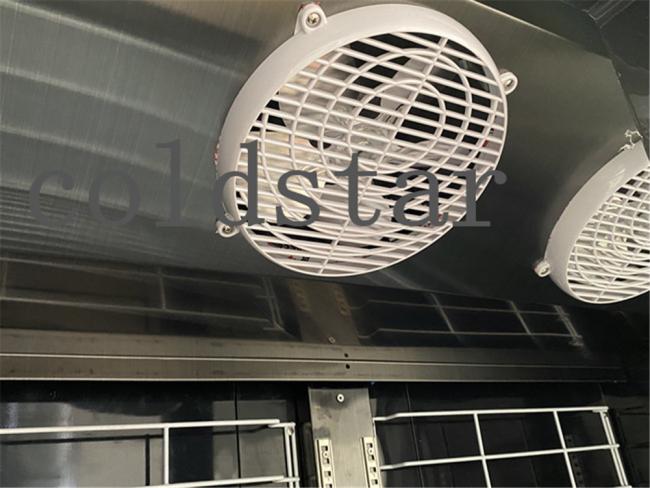

Machine Parts Fan cooling inside Big cooling unit and evaporator, keep foods and storage in cold condition all the time.
|
 |
Drainage type: automatic drain-water evaporating |
|
Main Features |
 |
|
Main Features Three-layer heating tempered glass No fog, no water drop.
|
 |
|
Main Features |
 |

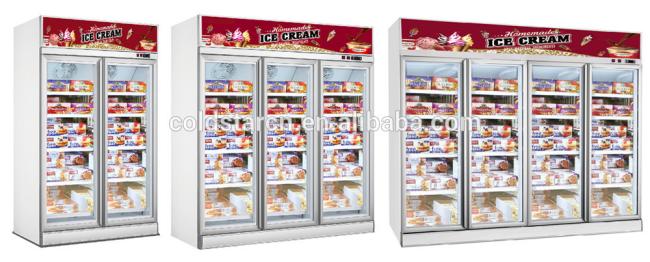

Product pictures
Package and Loading
Our Factory
