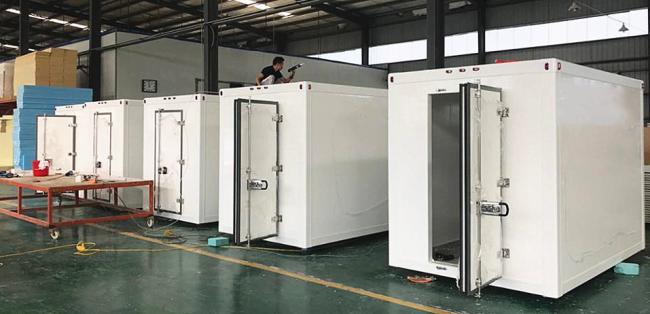

Hinged / Sliding Door Small Cold Room , -20℃ Meat Prefabricated Cold Room

The small cold room is wide use in hotel kitchen and restaurant, for keeping meat, fish and other frozen food freesh. It's a good choice for your limited space. Easy to install and operate. We use famous and stable refrigeration unit. Any customized size and temperature are acceptable.

1. Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.

2. Easier and faster installation,can be expended or removed in the future.

3. Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.

4. Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.

5. Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.

6. Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

7. Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

Temperature for reference:

1. Processing room: +10℃;

2. Fruit, vegetable, dry food: 0℃~ -5℃；

3. Medicine, cake pastry, chemical material: 0℃~ -5℃;

4. Ice storage: -5℃~-15℃;

5. Fish, meat storage: -18℃~ -25℃;

6. Blast freezer: -35℃

Details description:

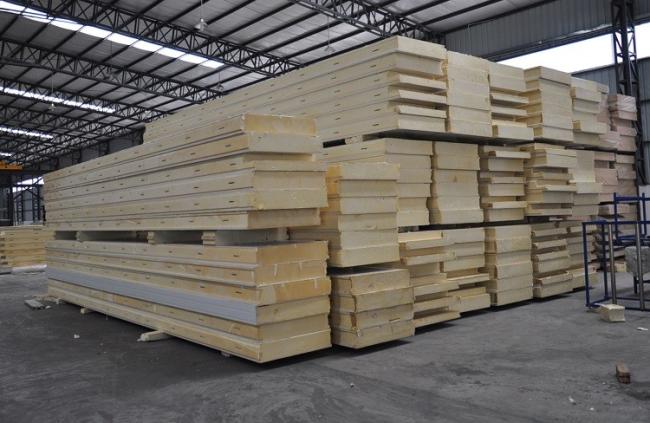

	Machine Parts   Cold room panel
Main Parts 100% copper pipe of Evaporator material
Machine Parts   Stable performance condening unit
	Machine Parts   Electric control box, with temperature control

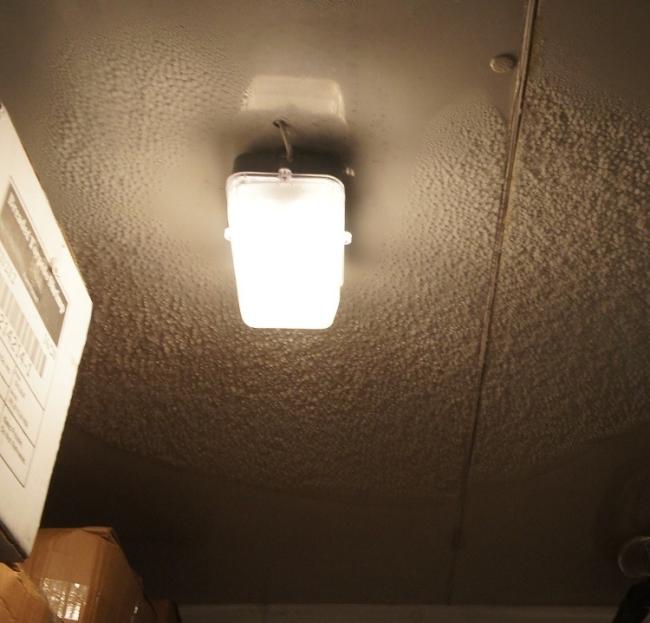

Machine Parts   Cold room lamp inside
	Machine Parts   We can provide you shelf inside if you need

Our previous projects:

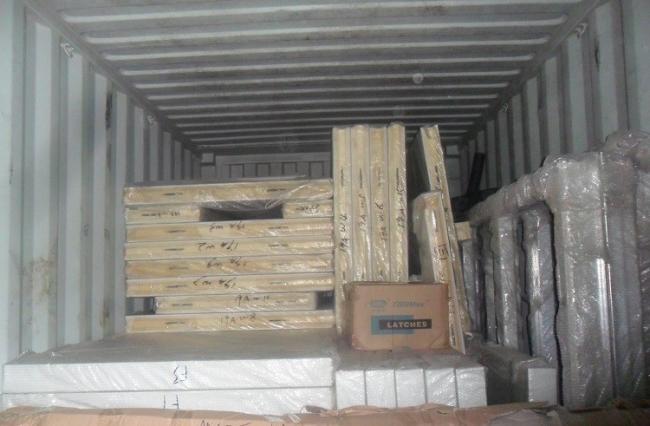

Package and Loading:

Cold storage installation steps:

Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up
