Large Energy-saving Cold room for Medicines, Reagents, Vaccines

Vaccine preservation is a very important task. All kinds of vaccines have corresponding storage temperature and storage conditions. If the vaccine is improperly stored, it will often lead to a decrease in vaccine efficacy or even failure. Inactivated vaccine should be stored at 2 ~ 8 ° C, the temperature will be too high, affecting the vaccination effect.

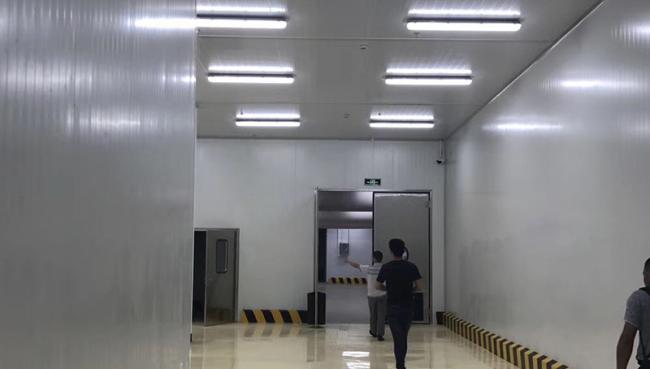

Product display:

Detailed description:

	Cold room panel Good insulation Density: 38~42kgs/m³ Simple and quick construction:Cam lock connection Long lifetime:20~30 years Flame retardant:B2 fireproofing grade
Condensing Unit 1.Independently developed Intelligent Controller 2.Advanced Fuzzy Control of Electronic expansion Valve 3.Intelligent on demand hot air defrosting, condensing fan speed regulation 4.Fault self-diagnosis function 5.Intelligent alarm system
	Air Cooler 1.Scientific design improves the heat exchange efficiency. 2. The shell is made of high-quality galvanized sheet spray or stainless steel,which is corrosion-resistant and beautiful in appearance. 3.Hig-quality stainless steel electric heating tubes are distributed on the evaporator core and the water tray ,and thr defrosting effect is good
Cold Room Door: 1.PU sandwich panel cold room door 2.Good heat preservation performance 3.Thickness:100mm/150mm/200mm 4. Classification: manual or electric sliding door, manual swing door,self-closing door, industrial sliding door,half buried door and other types according to customers. 5.Easy to install

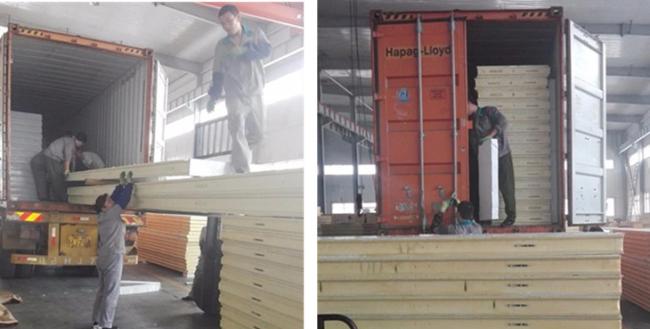

Delivery and installation:

Cold storage installation steps:

Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up

About Low and Intermediate temperature scroll condensing unit

Intermediate temperature scroll condensing unit:The medium temperature scroll condensing unit is prefilled with Copeland medium temperature ZB series compressor, suitable for reservoir temperature from 10 ℃ to -18 ℃.The nominal power of the unit is 3~15HP.

Low temperature scroll condensing unit:The low temperature scroll condensing unit is prefilled with low temperature air jet enthalpy increasing compressor R404a and is suitable for reservoir temperature from 5 ℃ to -30 ℃.The nominal power of the standard unit is 3 ~ 15HP.
