Customized Supermarket Freezer Frozen Food dispaly refrigerator
Customized Supermarket Freezer Frozen Food dispaly refrigerator
Ultra low cabinet temperature: -18~ -22 Celsius Degrees, suitable for ice cream.
Self-closing swing glass door with thick and removable door gasket.
Ventilated cooling system with plug-in Embraco compressor, easy to install .
Triple glazed thermal insulated anti fog heated glass door, providing maximum visibility to the frozen foods .
Digital temperature control system provides precise and constant temperature.
Automatic evaporator fan motor delays .
Interior vertical LED lighting for brilliant illumination .
Body structure is foamed with high-density PU (upto 40KG per m3) .
70mm High-desnsity foam material, foam layer thickening, good insulation.
Automatic defrosting with heating tubes .
Defrosting water auto evaporated by hot gas from compressor, without the water drainage problem .
Bottom mount compressor provides more efficient operation and easy access for maintenance and repair .
10PCS PVC coated adjustable heavy-duty steel wire shelves with price tags .
Voltage:220V/50Hz or 220V/60Hz or 110v/60Hz .
White or Black Body Color, and stainless steel cabinet bottom is optional.
Product parameters:
| Model | BGD-620F | BGD-1253F | BGD-1880F | BGD-2500F |
| Unit Size | 620×760×2000mm | 1253×760×2000mm | 1880×760×2000mm | 2500×760×2000mm |
| Package Size | 660×800×2100mm | 1300×800×2100mm | 1920×800×2100mm | 2540×800×2100mm |
| N-ST | 32℃ | 32℃ | 32℃ | 32℃ |
| Temperature | -18~ -22℃ | -18~ -22℃ | -18~ -22℃ | -18~ -22℃ |
| Refrigerant | R404A | R404A | R404A | R404A |
| Evaporator type | skin | skin | skin | skin |
| Evaporator material | copper pipe | copper pipe | copper pipe | copper pipe |
| Condenser type | skin | skin | skin | skin |
| Condenser material | copper pipe | copper pipe | copper pipe | copper pipe |
| Compressor type | Embraco/Secop | Embraco/Secop | Embraco/Secop | Embraco/Secop |
| Temperature control | Digital | Digital | Digital | Digital |
| Drainage type | automatic drain-water evaporating | automatic drain-water evaporating | automatic drain-water evaporating | automatic drain-water evaporating |
| Defrost type | solenoid valve | solenoid valve | solenoid valve | solenoid valve |
| Cabinet material | Painted steel | Painted steel | Painted steel | Painted steel |
| Door type | Defrosted glass | Defrosted glass | Defrosted glass | Defrosted glass |
| Lighting | Blue, white, yellow | Blue, white, yellow | Blue, white, yellow | Blue, white, yellow |
| Shelf | 5 | 5 | 5 | 5 |
This model of display cabinet can also be assembled into a refrigerator, temperature range: 2~8°C. If you are interested, please contact me to check the catalog.

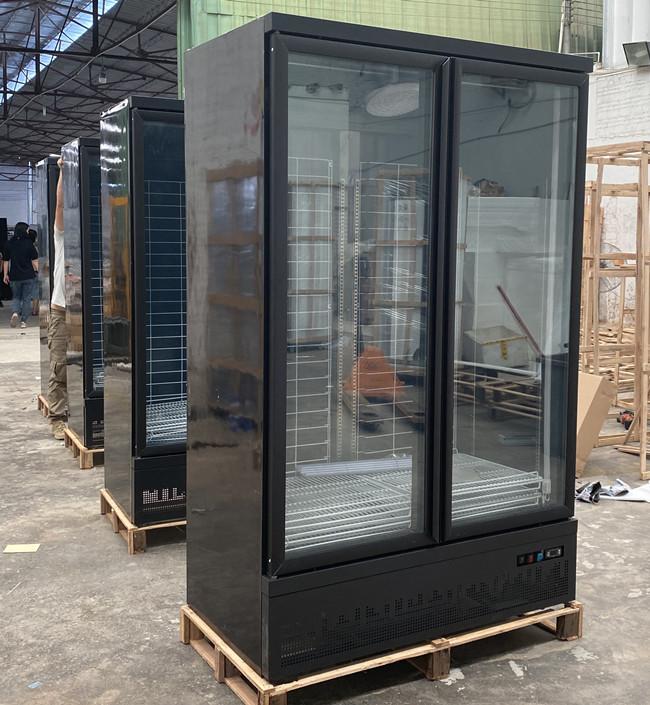

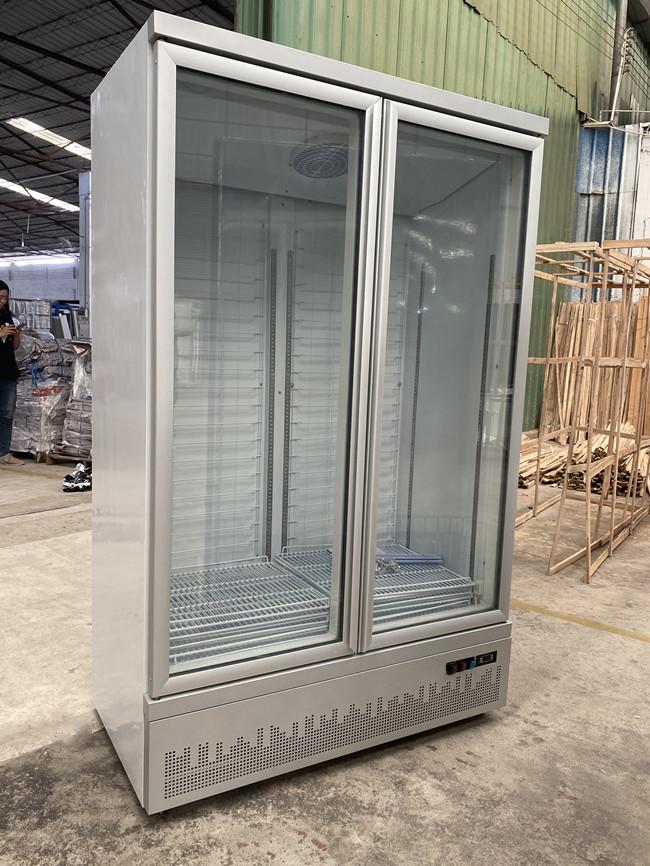

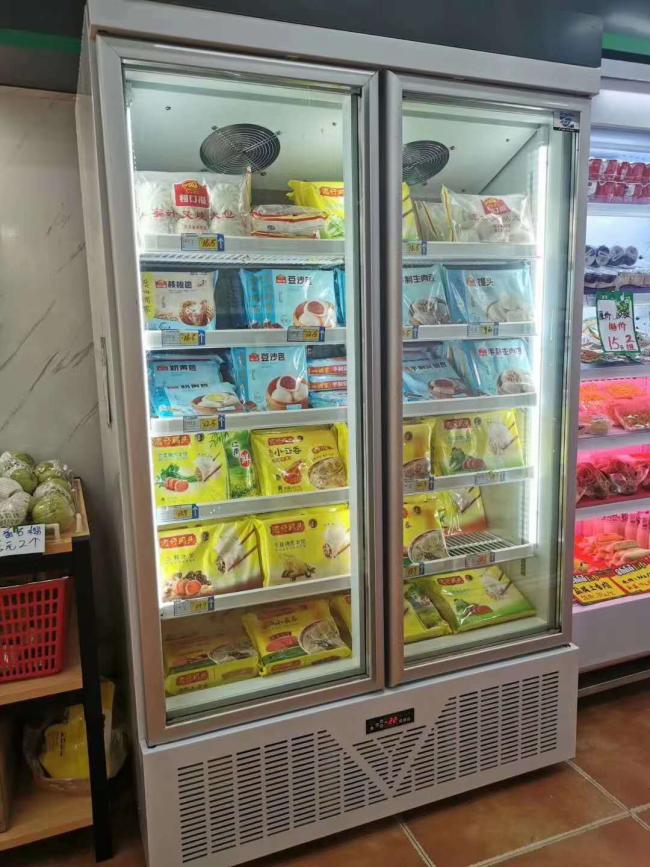

Product display:
How can we make the high-quality glass door freezers?
We have been making the upright glass door freezers since year 2010. We are well aware of that most of the problems on the glass door freezers are caused by the defrosting issue. We have well solved the defrosting issues from following aspects: 1. Ensure the freezer body is flat & smooth and glass door gasket is strong, so no leakage on the glass door. And all the holes on the freezer body are completely sealed. 2. Use the right power defrosting heater. 3. Install the defrosting water collection tray & water draining pipe with heating wires. 4. Evaporator fan motors are delayed to work after the defrosting ends.
