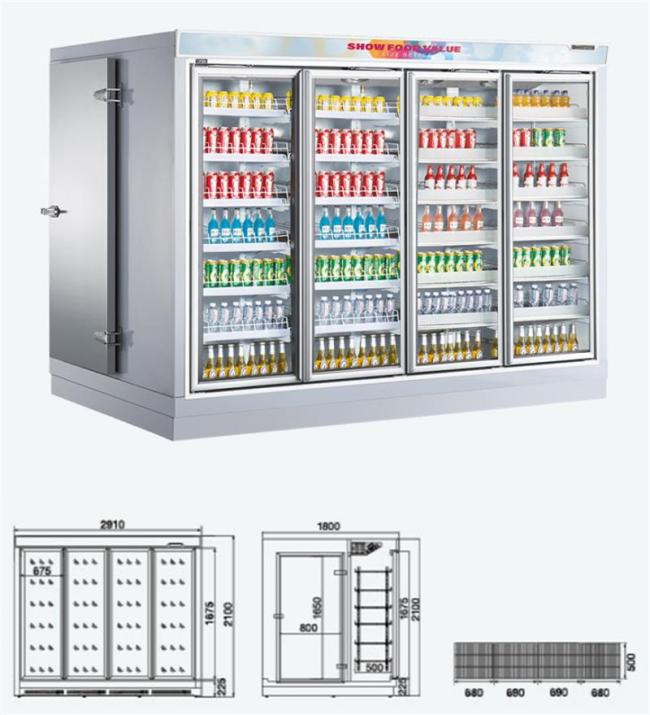

Walk In Display Cooler Bever Cold Drink Display Refrigerator Cold Room
Walk in display cooler bever cold drink display refrigerator cold room
glass doors displaying cold room are ideal for display and storage of chilled products such as beverages, dairy products, flowers, ice cream, meat, etc. Self closing, condensation-free doors ensure displays are kept at the right temperature, with the lowest possible energy consumption and cost.
Cold Room Specification:
1. Cold room can be produced for cooling fresh food, such as vegetable, fruit, beverage, dairy, mashroom etc. it also can be produced for freezing frozen food, meat, seafood etc.
2. Adopt COPELAND comppressor, pure copper evaporator and condenser, cooling faster and stable.
3. Digital temperature controller, automatic defrost.
4. CFC free cold room panel
5. It widely used in supermarket, convenience store, farm, food process factory, medical company etc.
Cold Room Parameter:
Ddimension: any length/depth/height
Temperature: 2~10 degree for cooling, -16~ -20 degree for frozen. Any other temperature can be customized
Cold room panel thickness: 100mm (75mm/150mm for option)
Cooling system: fan cooling
Voltage: 220~240V/50Hz~60Hz/1N, 220V /60Hz/3N; 380V/50Hz/3N
Compressor: Copeland brand with R404a refrigerant
Solid door size: 800*1800mm, hinged door. (sliding door for option)
| Dimension | 2910L*1800W*2100H (mm) |
| Panel | Wall & Ceiling panels |
| both sides 0.326mm color painted galvanized steel polyurethane panel thick 100mm | |
| floor panels | |
| outter 0.326mm Color painted galvanized steel | |
| inner 0.5 mm galvanized steel polyurethane panel thick 100mm | |
| Foaming material | BASF |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | glass door 725*1775mm |
| Temp.of room | 0~8 degree C, freezer tempeprature is acceptable |
| Purpose of cold room | for flower display beverage in supermarket |
| Refrigeration unit | zanotti uniblock unit 3hp / |
| Refrigeration type | air cooled |
| Fittings | all necessary fittings are included, optional Copeland split unit |
| Place to assemble | indoor |
| Voltage | 380V/50HZ |
| standard glass doors displaying cold room measurement | |
| Model | Unit size(mm) |
| RB2210-3M | 2210*1800*2100 |
| RB2910-4M | 2910*1800*2100 |
| RB3610-5M | 3610*1800*2100 |
| RB4310-6M | 4310*1800*2100 |
| RB5010-7M | 5010*1800*2100 |
| RB5710-8M | 5710*1800*2100 |
| RB6410-9M | 6410*1800*2100 |
| RB7110-10M | 7110*1800*2100 |
| glass doors displaying cold room panel Testing Specification | ||||
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

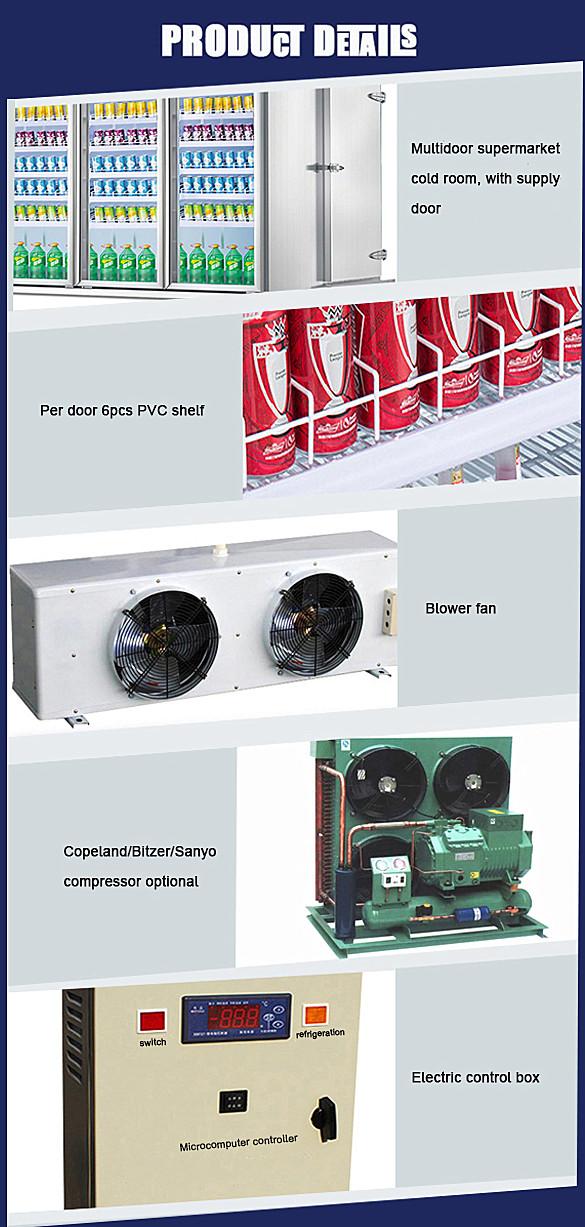

Product display
