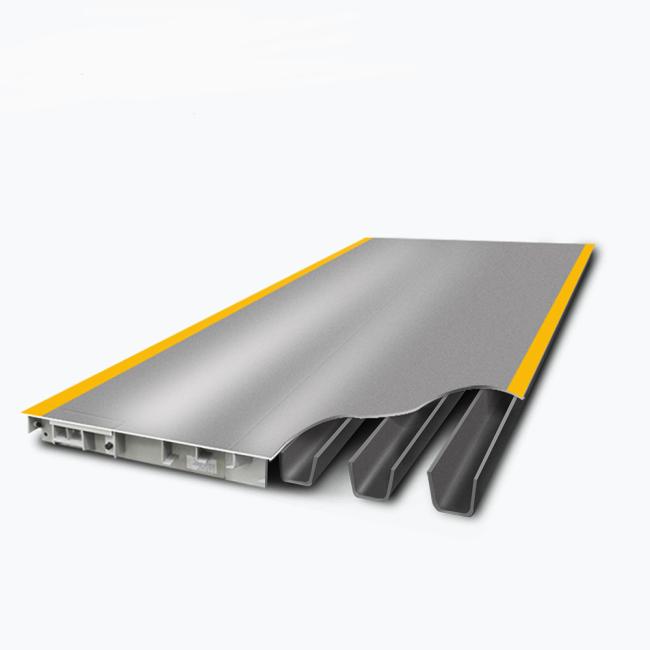

U Beams Above Ground Truck Scales , Stainless Steel Platform Scale Modular Design 40 Ton
Price:
Negotiated price
MOQ:
1 set
Delivery Time:
10~25 days
Brand:
Purple Horn
Product Description
Steel Platform Modular Design 40 Ton Above Ground Truck Scales
Purple Horn SCS series electronic truck scale is a new generation of truck scale which depends on today's domestic truck scale advantage. It's gradually developed by our own technology and long period of overloading tests.
Features:
-

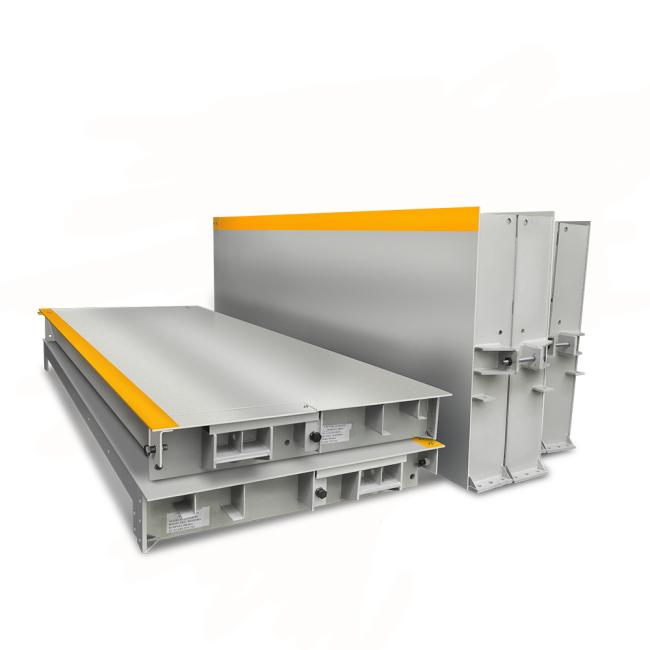

Modularized scale platform -
High precision and high protection digital load cells - Pitless or pit installation way
-
Easy operations -
Networking, management efficiency -
Grosse weight, tare, net weight display. User can set date, time, serial number, truck no. and cargo no. -
1000 car No. tare weight, cargo No and group weighing record. -
Different format daily report, work report, total report, can be printed separately -
Disconnection protective, long-term info. Storage -
Platform Size: customized also available
| Truck Scale Technical Paramater | |
| Type | Digital truck scale |
| Platfrom size | 40 Ton |
| Platform material | 8/10/12/14/16/20mm thickness top steel plate |
| Painting | poxy zinc rich primer and acrylic marine paint |
| Max. Cap | From 30ton to 150ton available |
| Accuracy | OIML Ⅲ |
| Safe over loade | 150%F.S |
| Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
| Load cell | Keli digital load cell or ZEMIC digital load cell |
| Weighing indicator | YAOHUA or Purple Horn indicator |
| Interface | RS232 (or RS485), PC, printer, extra scoreboard |
| Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
| Working humidity | ≤95% |
| Certificate | CE, OIML, ISO9001:2015 |
| Recommended dimension for Purple Horn truck scale platform | |||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
