High Solidity Industrial Weighing Machine 60 Ton Electronic Digital Truck Load Scales
Price:
Negi
MOQ:
1 set
Delivery Time:
10~25 days
Brand:
Purple Horn
Product Description
Industrial Weighing Machine 60 Ton Electronic Digital Truck Load Scales

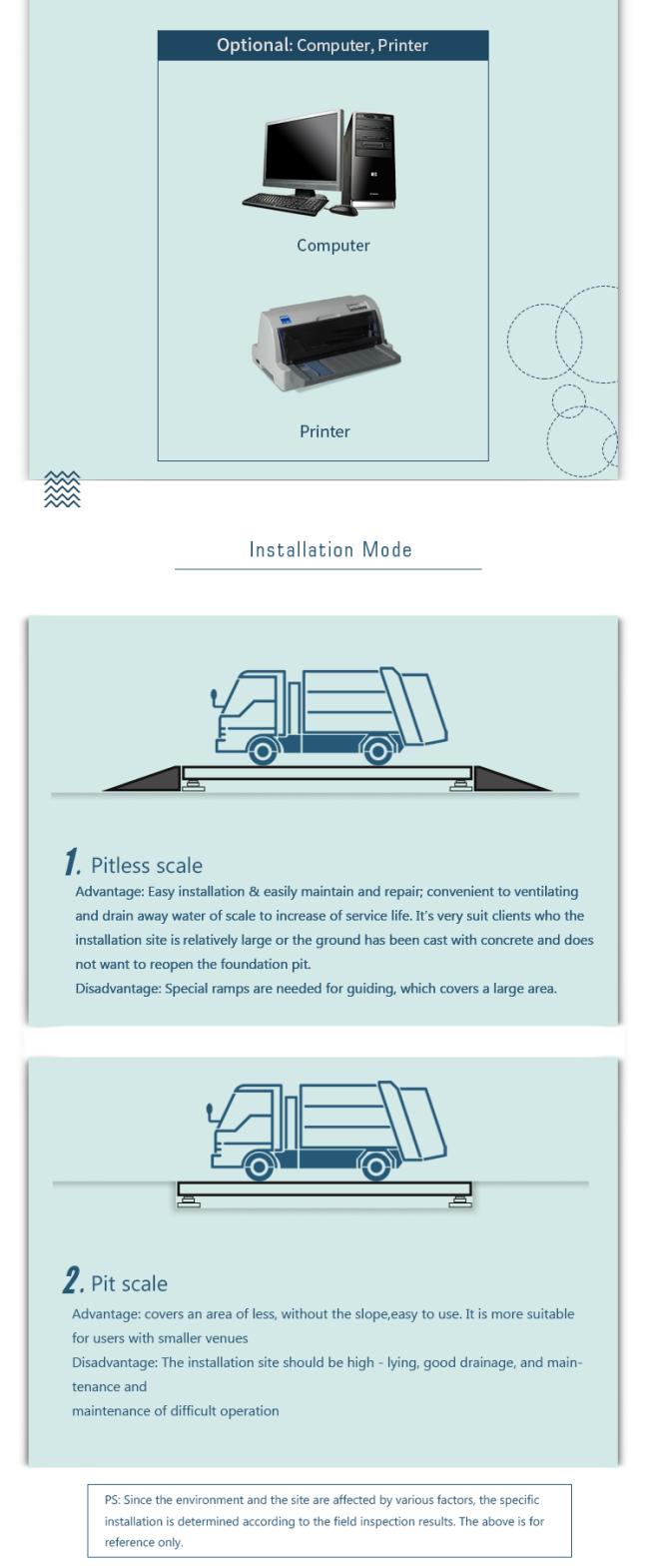

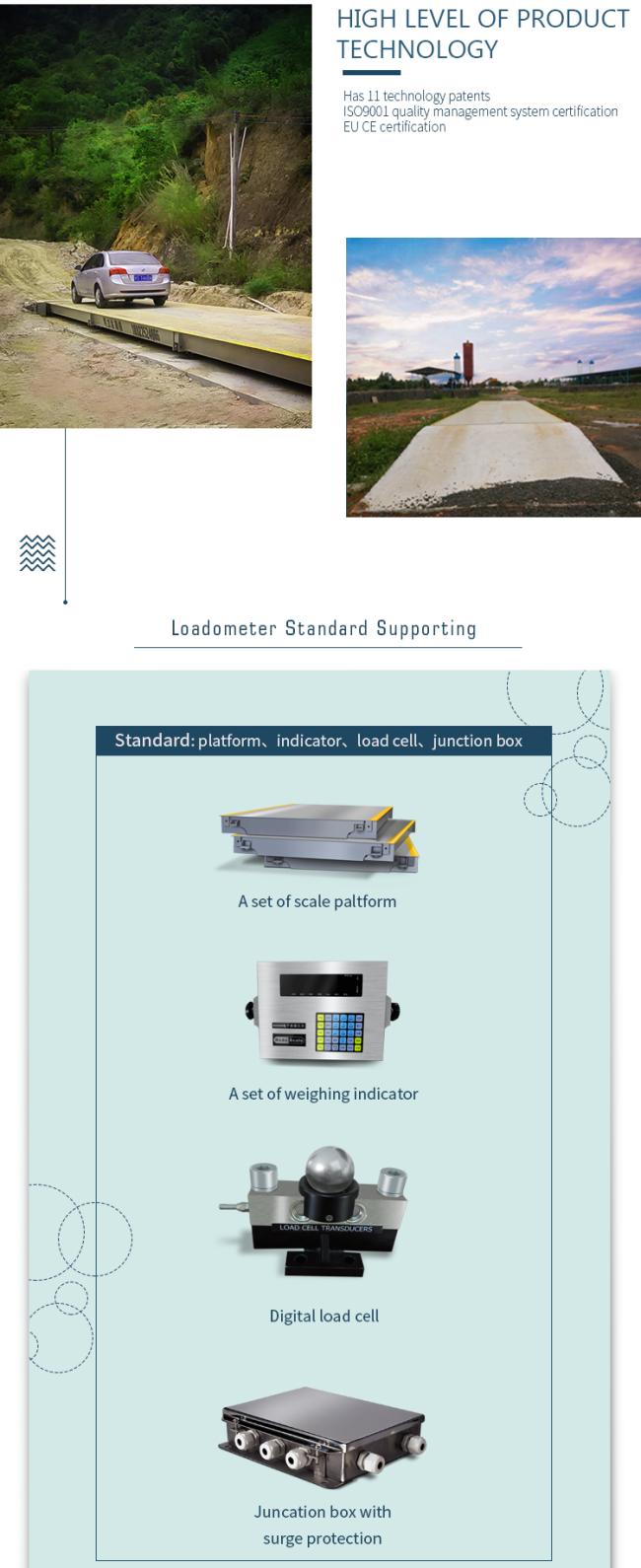

U beam structure platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.
Product Feature:
-
Weigh bridge resistance strain digital sensor, good moisture proof seal, adapt to any bad working environment -
intelligent instrument with many display function and mass storage volume, standard serial output, strong extended function -
modular weighing platform, U type steel structure, high solidity, good interchangeable function, can be equipped with computer management system -
multi-functional weighing measurement system
Specification:
| Plate Material | Q235 carbon steel, 8/10/12mm steel plate is optional |
| Indicator/Display | Analog A9, A9P optional(OIML&CE approved), Digital Yaohua DS10 or DS8 and Keli D2008H |
| Load Cells | Keli or Zemic bridge type digital load cells |
| Display Designators | On/Off, Zero, Tare, kg/lb. |
| Transmission Distance | RS232C≤30m |
| Power Supply | Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH |
| Junction box | Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems |
| Signal cable | 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate |
| Color | Standard color |
|
Recommended dimension for Purple Horn truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
