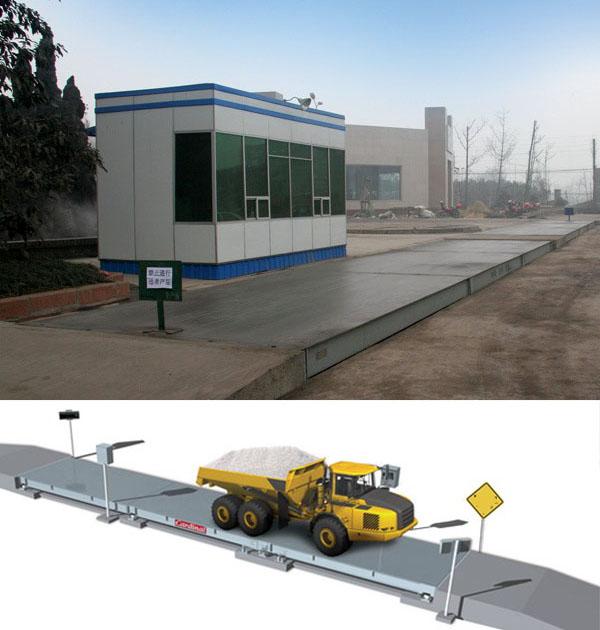

Q235 Steel Industrial Truck Scales SCS Digital Computerised Weighbridge
SCS Digital Computerised Weighbridge / Computerised Truck Scale
We offer a range of high accurate Mechanical Weigh Bridge, which is popular for its sturdy construction and operations. Available in customized options, our weighing bridge is ideally used for measuring the weight of the truck. These are manufactured from quality raw material and are quality tested on well-defined parameters before being delivered to our clients. These Electronic Computerized Weigh Bridge are manufactured from quality raw material and are quality tested on well-defined parameters before being delivered to our clients.
Product Feature:
-
Weigh bridge resistance strain digital sensor, good moisture proof seal, adapt to any bad working environment -
intelligent instrument with many display function and mass storage volume, standard serial output, strong extended function -
modular weighing platform, U type steel structure, high solidity, good interchangeable function, can be equipped with computer management system -
multi-functional weighing measurement system
Specification:
| Plate Material | Q235 carbon steel, 8/10/12mm steel plate is optional |
| Indicator/Display | Analog A9, A9P optional(OIML&CE approved), Digital Yaohua DS10 or DS8 and Keli D2008H |
| Load Cells | Keli or Zemic bridge type digital load cells |
| Display Designators | On/Off, Zero, Tare, kg/lb. |
| Transmission Distance | RS232C≤30m |
| Power Supply | Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH |
| Junction box | Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems |
| Signal cable | 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate |
| Color | Standard color |
|
Recommended dimension for Purple Horn truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
