OIML 3 Class 60 Ton Digital 70 Ft Vehicle Truck Weighbridge
China Supplier Digital 70 ft Length Vehicle Truck Weighbridge Price
Introduction:
Adopting a strong U-beam structure, the panel adopts a flat plate or tread plate of suitable thickness, and is reasonably spliced ??into a closed box structure, which greatly improves the strength of the scale.
The unique tooling fixture, precise space positioning measurement technology and advanced welding technology are used in group welding to effectively ensure the flatness, space geometry and reasonable distribution of welding stress of such large-area weighing platform.
The weighing platform is modular, standardized and serialized. It can be freely composed of various specifications. It adopts high-precision double-shear beam or column load cell and has rich functions, strong storage function, and weighing with battery with power-off function. Display instrument, stainless steel waterproof junction box with high-precision low-temperature anti-interference discharge surge, signal shielding cable constitutes a multi-functional stable metering system.
Scope of application

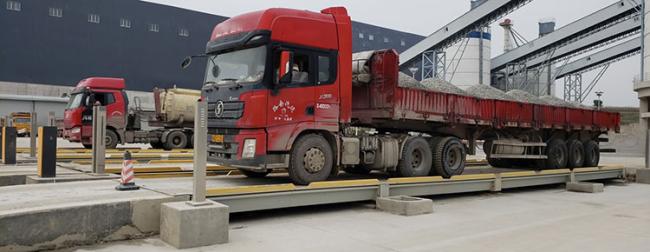

superior computing system, high accuracy, long-term stability, installation and maintenance and convenient, widely used in factories, freight yards, warehousing, ports, workshops, grain depots, acquisition stations and other places of import and export materials measurement, inventory measurement , production monitoring and data management. Applicable to metallurgy, miners, chemicals, food, logistics and other industries, is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.
Structural features
-
Modular, digital, standardized, serialized, multi-unit combination -
Automatic reset force transmission mechanism -
Match all kinds of instruments -
Display gross weight, net weight, tare weight -
Dynamic, underload and overload status display -
Digital filtering, automatic clearing -
Keyboard setting correction -
Car number, tare storage, itemized accumulation, total accumulation -
Data output, automatic printing
| Plate Material | Q235 steel plate |
| Indicator/Display | Digital weiging indicaotor |
| Load Cells | Keli or Zemic bridge type digital load cells 30T |
| Display Designators | On/Off, Zero, Tare, kg/lb. |
| Transmission Distance | RS232C≤30m |
| Power Supply | Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH |
| Junction box | Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems |
| Signal cable | 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate |
| Color | Standard color |
Recommended dimension for Purple Horn truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
Modular design
U beam Structure
