Ungalvanized Steel Wire Rope 6x19+IWR, 1570-1870MPa, 3-46mm, For Lifting & Dragging, High Breaking Load

Ungalvanized Steel Wire Rope 6x19+IWR, 1570-1870MPa, 3-46mm, For Lifting & Dragging, High Breaking Load

1. Product Identification & Standards

• Product Name: Steel Wire Rope (ungalvanized and galvanized)

• Standard: GB/T 20118-2006

• Construction: Strand (e.g., 6x19+FC, 6x19+IWS, 6x19+IWRC)

• Application: Lifting machine, fish net dragging, heat steel-moving machine.

2. Primary Specifications

• Nominal Diameter (mm): 3 to 46

• Approximate Weight (kg/100m): Varies based on core type (NF, SF, IWR)

• Nominal Tensile Strength (MPa): 1570, 1670, 1770, 1870

• Minimum Breaking Load (KN): The load at which the rope breaks, categorized by:

  • Fiber Core (FC)

  • Steel Core (IWR / IWS)

3. Core Types

• NF: Natural Fiber Core

• SF: Synthetic Fiber Core

• IWR: Independent Wire Rope Core (Steel)

• IWS: Independent Wire Strand Core (Steel)

• FC: Fiber Core

4. Calculation Note (from the footnote)

• Minimum Breaking Force Sum: Minimum Breaking Load × 1.226 (for Fiber Core) or × 1.321 (for Steel Core).

Example of Data Points (Diameter 3mm):

• Weight: 3.16 kg (NF) / 3.10 kg (SF) / 3.60 kg (IWR)

• Min Breaking Load (1570 MPa): 4.34 KN (FC) / 4.69 KN (IWS)

• Min Breaking Load (1870 MPa): 5.17 KN (FC) / 5.59 KN (IWS)

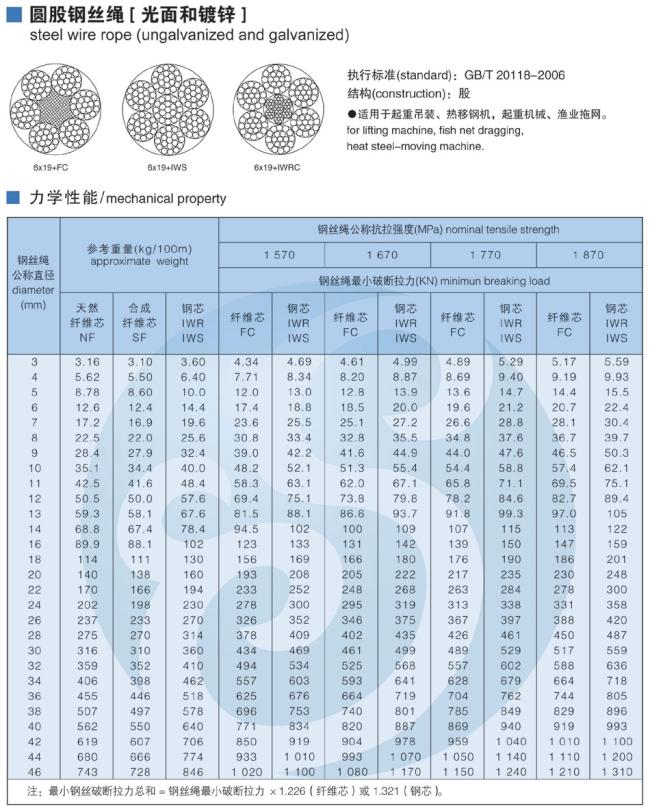

Product Images
