ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door
Shaft and machine room dimensions for mini MR passenger elevator
1, Passenger elevators and escalators, sightseeing lift ,moving walk and home lift .
2, Good quality and competitive price
3, Good before and after sales service.
| Load(kg) | Speed(m/s) |
Opening width JJ(mm) |
Car width AA(mm) |
Car depth BB(mm) |
Car height CH(mm) |
Hoistway width AH(mm) |
Hoistway depth BH(mm) |
Machine room width AM(mm) |
Machine room depth BM(mm) |
QH(mm) |
| 450 | 1.0 | 800 | 1400 | 850 | 2385 | 1900 | 1500 | 1900 | 1500 | 975 |
| 630 |
1.0 1.6 1.75 |
800 | 1400 | 1100 | 1900 | 1750 | 1900 | 1750 | 975 | |
| 800 | 1100 | 1400 | 1800 | 2050 | 1800 | 2050 | 900 | |||
| 800 |
1.0 1.6 1.75 2.0 2.5
|
800 | 1400 | 1350 | 2385/2490 | 1900 | 2000 | 1900 | 2000 | 975 |
| 800 | 1350 | 1400 | 1850 | 2050 | 1850 | 2050 | 950 | |||
| 1000 |
1.0 1.6 1.75 2.0 2.5 |
900 | 1600 | 1500 | 2200 | 2150 | 2200 | 2150 | 1100 | |
| 900 | 1600 | 1400 | 2200 | 2050 | 2200 | 2050 | 1100 | |||
| 900 | 1100 | 2100 | 2100 | 2500 | 2100 | 2500 | 1093 | |||
| 1250 |
1.0 1.6 1.75 2.0 2.5 |
1000 | 1800 | 1500 | 2490 | 2400 | 2250 | 2400 | 2250 | 1200 |
| 1100 | 2000 | 1400 | 2600 | 2150 | 2600 | 2150 | 1300 | |||
| 1350 |
1.0 1.6 1.75 2.0 2.5 |
1100 | 2000 | 1500 | 2600 | 2250 | 2600 | 2250 | 1300 | |
| 1600 |
1.0 1.6 1.75 2.0 2.5 |
1100 | 1950 | 1750 | 2600 | 2500 | 2600 | 2500 | 1300 | |
| 1100 | 2000 | 1750 | 2600 | 2500 | 2600 | 2500 | 1300 | |||
| 1100 | 2100 | 1600 | 2700 | 2350 | 2700 | 2350 | 1350 |

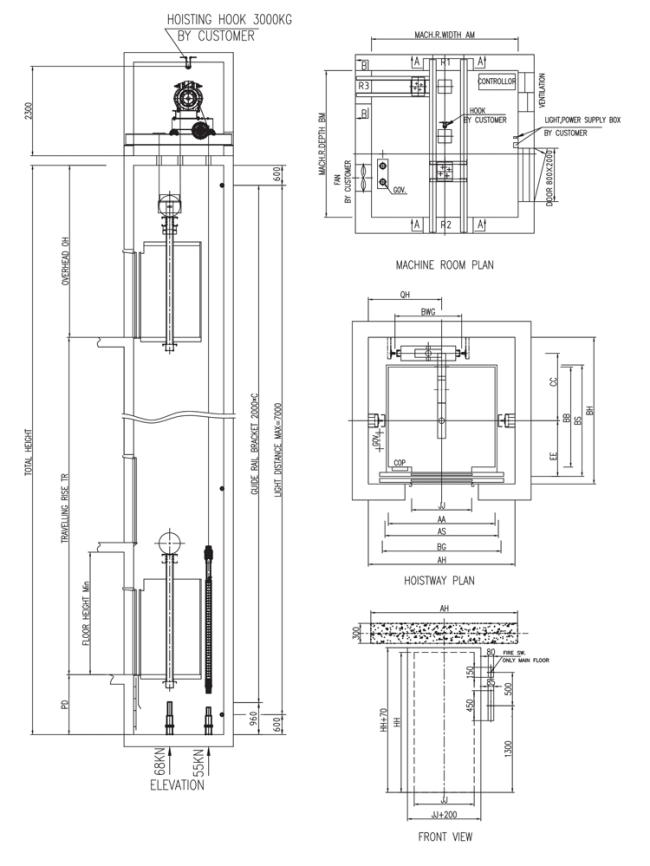

Construction Sketch
FAQ
1. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
2. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
3. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
4. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
