Fixed Jaw Plate for Primary Crusher High Tensile Strength Alloy Steel Quarry Wear Component
Product Description:
Heavy-duty crusher wear components are designed to improve crushing efficiency and reduce maintenance downtime in industrial crushing systems. Jaw crusher jaw plates produced from Mn13 and Mn18 high manganese steel provide reliable impact absorption and abrasion resistance under severe working conditions. Their precision-engineered tooth pattern increases throughput and improves material flow during primary crushing. Impact crusher blow bars manufactured from Cr15 and Cr26 high chrome alloy materials offer exceptional wear resistance and stable crushing performance for aggregate shaping and recycling applications. Cone crusher liners including mantles and concaves ensure efficient compression crushing and improved particle gradation. Advanced casting technology and strict heat treatment processes ensure stable hardness distribution and long service life in quarry and mining operations.
Crusher wear parts are essential components in crushing systems used in mining, quarrying, aggregate production, recycling, and construction industries. These consumable parts directly affect crushing efficiency, particle shape, operational stability, and production costs.
HUATAO GROUP supplies a complete range of premium crusher wear parts including:
- Jaw Crusher Jaw Plates
- Impact Crusher Blow Bars
- Cone Crusher Mantle & Concave
Manufactured with high manganese steel, high chrome iron, alloy steel, and composite materials, our wear parts are engineered for high abrasion resistance, impact toughness, and long service life under demanding working conditions.
Our crusher wear parts are widely used in:
- Gold ore crushing plants
- Copper ore processing
- Iron ore mining
- Granite and basalt quarrying
- Limestone crushing
- Aggregate production lines
- Recycling and demolition waste processing
- Cement and construction industries
Suitable for:
- Primary crushing
- Secondary crushing
- Tertiary crushing
- Aggregate shaping

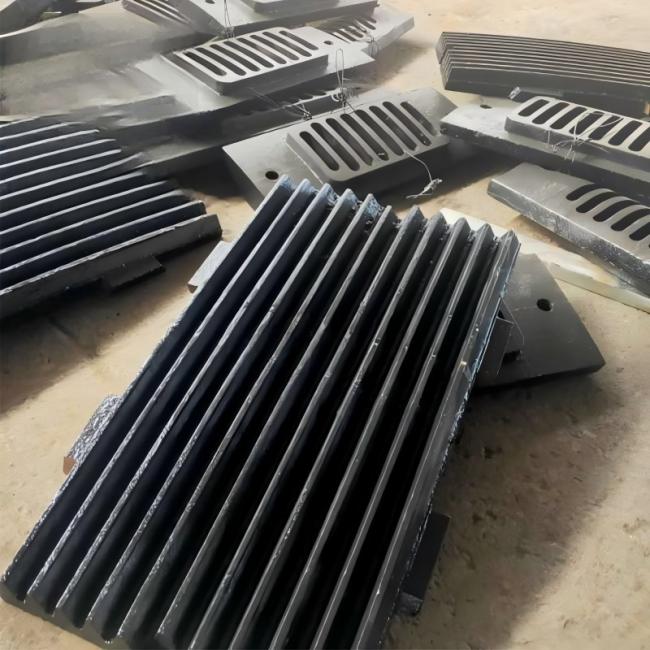

Used in jaw crushers for primary crushing of hard rocks and ores through compressive force.
- Excellent wear resistance
- Optimized tooth profile improves crushing efficiency
- Reduces vibration and operating noise
- Extends replacement cycle
- Improves material gripping performance
- Mn13
- Mn18Cr2
- Alloy steel
- Composite high chrome inserts
| Parameter | Range |
|---|---|
| Thickness | 50-250 mm |
| Length | 300-2500 mm |
| Tooth Height | 20-100 mm |
| Hardness | 200-400 HB |
| Tensile Strength | ≥850 MPa |

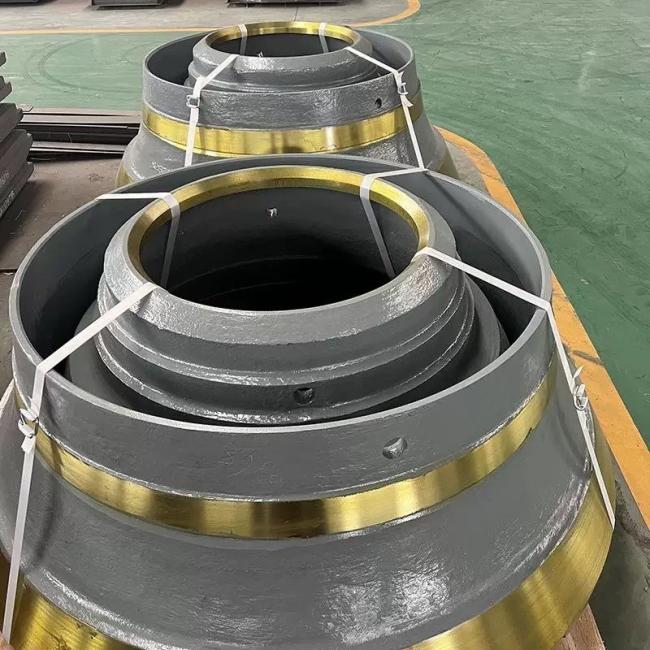

Used in cone crushers for secondary and tertiary crushing of medium and high hardness materials.
- Precision casting technology
- Stable cavity geometry
- Uniform wear distribution
- Better particle shape
- Reduces flaky particles
- High throughput efficiency
- Mn18Cr2
- Mn22Cr2
- Ultra-high manganese steel
- Mo/Ni alloy steel
| Component | Diameter | Weight | Hardness |
|---|---|---|---|
| Mantle | 300-2000 mm | 50-5000 kg | 220-380 HB |
| Concave | 500-2500 mm | 100-8000 kg | 220-380 HB |

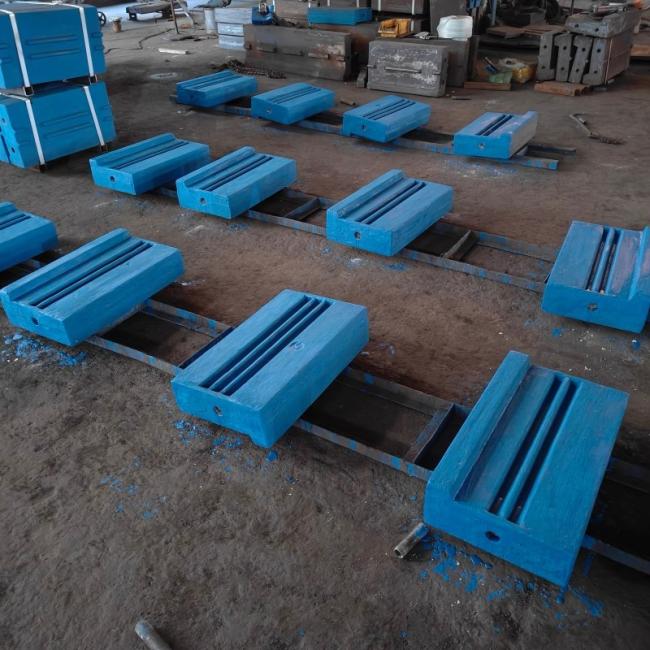

Installed on impact crusher rotors for crushing limestone, concrete, asphalt, and construction waste.
- High impact toughness
- Strong fracture resistance
- Large reduction ratio
- Uniform product size
- Easy replacement
- Low maintenance cost
- High Chrome Iron Cr15-Cr26
- High manganese steel
- Alloy steel
- Ceramic insert composite
| Parameter | Range |
|---|---|
| Length | 200-1800 mm |
| Width | 100-400 mm |
| Thickness | 50-200 mm |
| Weight | 5-200 kg |
| Hardness | 50-62 HRC |
Premium alloy materials with advanced heat treatment technology.
Custom-fit for Me**o, Sa**vik, Te**x, Sy**ns, Sha**ao and other crusher brands.
Optimized wear profiles improve uptime and reduce replacement frequency.
Improves throughput and particle shape quality.
Reduces downtime and maintenance expenses.
| Wear Part | Crusher Type | Recommended Material | Suitable Material |
|---|---|---|---|
| Jaw Plate | Jaw Crusher | Mn18Cr2 | Granite Hard Ore |
| Mantle & Concave | Cone Crusher | Mn22Cr2 | Medium-High Hardness Ore |
| Blow Bar | Impact Crusher | High Chrome Iron | Limestone Concrete |
To recommend the correct crusher wear parts please provide:
- Crusher brand and model
- OEM part number (if available)
- Material being crushed
- Feed size and output size
- Working condition and abrasiveness
- Required quantity
- Drawings or photos (if available)
