Polypropylene PP Non Woven Geotextile Filter Fabric White Color For Marine Works
Polypropylene PP Non Woven Geotextile Filter Fabric White Color For Marine Works
Non Woven Geotextile Description
Made from high strength PP (polypropylene) short fiber by nonwoven needle punched manufacturing process . The mechanical values are 2 -3 times more than ordinary products .
Non Woven Geotextile Specification
- 1. Weight Type: 80GSM - 1500GSM
- 2. Width: Max 6 Meters, Length as request
- Color: White, Black, Gray, Green, Brown, and so on.

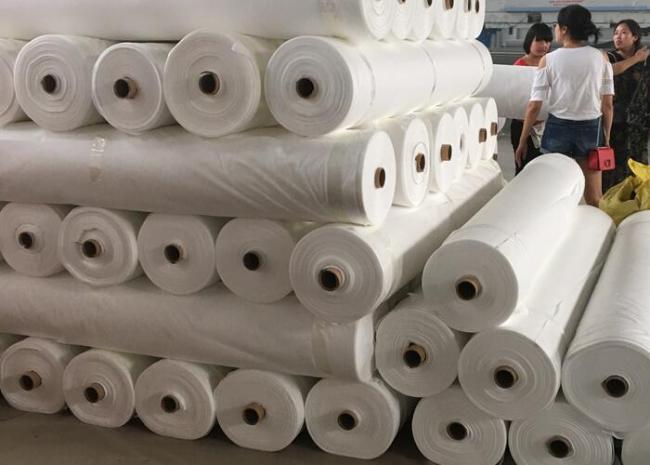

- Package: Paper core, Waterproof membrane and plastic bag.

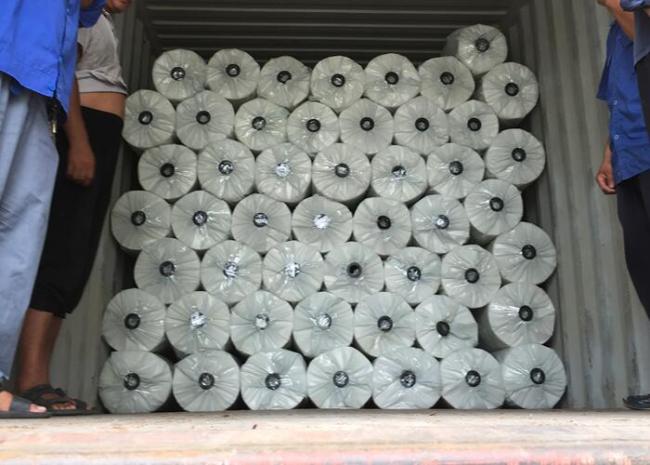

- Loading details: 20ft container, 40ft High container.
Non woven geotextile Property
1. Good acid and alkali resistance, excellent hot melting adhesiveness, high anti-abrasion performance
2. Separation, filtration, drainage, reinforcement, protection, and maintenance function
Non woven Geotextile Application
It widely used in railway,road,gymnasium,dike,marine works,tunnel,tideflat,reclamation and environment protection projects.
1) Filtration :
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2) Separation :
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3) Adding muscle :
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
4) Protection :
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
They use include:
Water conservancy project and hydropower project
Road paving , railway , highway ...
Airport and port
River bank protection and tunnel
Environmental protection , etc
PPNon woven Geotextile Specification
| No. | Items | Testing Method | unit | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | ||||||
| 1 | Weight Variation | ASTM D 5261 | % | ±5 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ||||||
| 2 | Grab strength | MD | ASTM D 4632 | ≥N | 350 | 700 | 1100 | 1400 | 1800 | 2200 | 2800 | 3400 | |||||
| CD | 350 | 700 | 1100 | 1400 | 1800 | 2200 | 2800 | 3400 | |||||||||
| 3 | Grab elongation | MD | ASTM D 4632 | % | 50~90 | 50~100 | |||||||||||
| CD | 50~90 | 50~100 | |||||||||||||||
| 4 | Trapezoid Tear | MD | ASTM D 4533 | ≥N | 135 | 280 | 350 | 400 | 480 | 550 | 650 | 750 | |||||
| CD | 135 | 280 | 350 | 400 | 480 | 550 | 650 | 750 | |||||||||
| 5 | Mullen bursting strength | ASTM D 3786 | ≥KN | 1.0 | 2.1 | 3.2 | 3.8 | 4.5 | 5.5 | 6.5 | 7.5 | ||||||
| 6 | Breaking strength | MD | ASTM D 4595 | ≥KN | 3.5 | 8 | 12 | 18 | 24 | 30 | 40 | 50 | |||||
| CD | 3.5 | 8 | 12 | 18 | 24 | 30 | 40 | 50 | |||||||||
| 7 | Breaking elongation | MD | ASTM D 4595 | % | 40~65 | 50~80 | |||||||||||
| CD | 40~65 | 50~80 | |||||||||||||||
| 8 | Puncture strength | ASTM D 6241 | ≥N | 180 | 360 | 550 | 750 | 900 | 1150 | 1450 | 2000 | ||||||
| 9 | Thickness | ASTM D 5199 | mm | 1.4~1.7 | 1.8~2.2 | 2.4~2.8 | 3.0~3.5 | 3.6~4.0 | 4.0~4.4 | 4.8~5.2 | 5.6~6.0 | ||||||
| 10 | Peel Strength | N/5cm | ≥80 | ≥90 | |||||||||||||
| 11 | Acid and alkali | % |
Keep the rate of breaking strength≥90% Keep the rate of breaking elongation≥90% |
||||||||||||||
| 12 | Sieve size O90 | ASTM D 4751 | mm | ≤0.1 | |||||||||||||
| 13 | Vertical permeability coefficient | ASTM D 4491 | Cm/s | ≤0.2 | |||||||||||||
