Fiberglass Biaxial Geogrid Reinforcing Fabric Corrosion Resistance For Road
Geogrid Reinforcing Fabric Fiberglass Biaxial Geogrid Reinforcing Fabric Corrosion Resistance For Road
1. Fiberglass Biaxial Geogrid Introduction
| Tensile strength: MD/CD | 25- 400kn |
| width | 1-6 m |
| Length | 50-100m or as customers' requests |
| Material | Fiberglass |
| Coating | Bitumen |
| Type | Regular, Self-adhesive |
| Port | Qingdao |
| Delivery | 2-20 days |
| Packing | woven bag or as customers' requests |
2. Fiberglass Biaxial Geogrid Feature
1) High tensile strength; low elongation; high modulus; high temperature resistance
2) Corrosion resistance; ageing resistance,
3) Good toughness; good physical and chemical stability, thermo-stability
4) Stick-to-active for performance exchanging during long-term using
3. Fiberglass Biaxial Geogrid Function

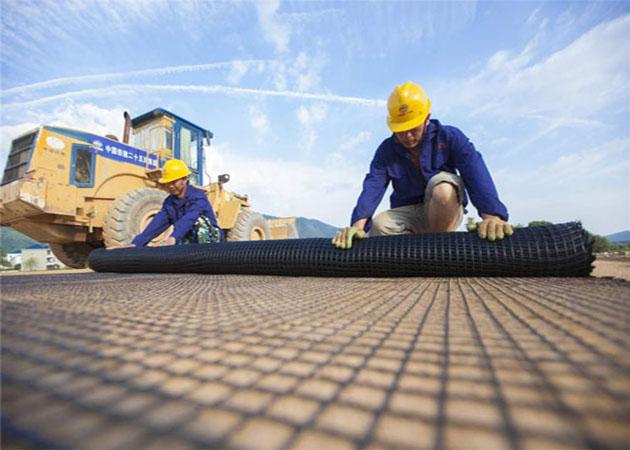

1) Maintenance and reinforcement of old asphalt road.
2) Rebuild old cement concrete road into composite road, restrain reflection crack caused by different block contraction.
3) It has widely applied in road renovation and expansion project, prevents cracks along the joint position caused by uneven sedimentation.
4) It is used for soft sub grade reinforcement. The geogrid will help the water infiltration and soil concretion, restrain subsidence effectively, and decentralize stress evenly, enhance overall strength of the roadbed.
Technical Parameter
4.Fiberglass Biaxial Geogrid technical Parameter
Regular/ Self-adhesive Fiberglass Geogrid
| Specification | EGA 25-25 | EGA 30-30 | EGA 40-40 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 160-160 | EGA 200-200 | EGA 260-260 | EGA 300-300 | EGA 400-400 | |
| Elongation ration % | ≤3 | ||||||||||||
| Intensity (KN/m) | MD | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 160 | 200 | 260 | 300 | 400 |
| CD | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 160 | 200 | 260 | 300 | 400 | |
| Grid size (mm) | 12.7×12.7 25.4×25.4 50×50 | ||||||||||||
| Width (m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |
