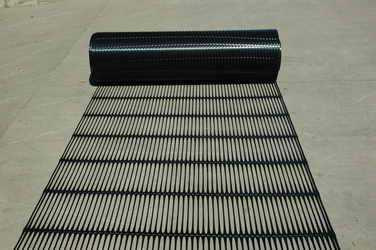

Plastic Uniaxial Geogrid / HDPE Uniaxial Geogrid Creep Resistance
Geogrid Reinforcing Fabric Plastic Uniaxial Geogrid made by HDPE and PP Material

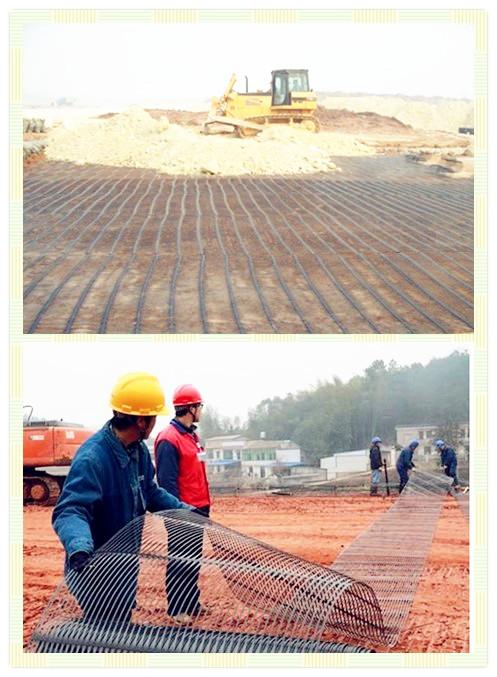

Plastic Uniaxial Geogrid was made by high density polyethylene as its raw material, produced through plate-extruding, punching, heating, stretching. After stretching, the messy chain constructurt will be orioutated again to get a linear state, so that the plastic uniaxial geogrid enhances its tensile strength & rigidity. By laying it into the foun- dation soil, the stress transmission organ will the constructed through the meshing and lock between the mesh hole and soil, to spread the partial to wide soil base, rapidly & efficiently. Then the partial destroy stress will be lowed down, the lifespan will be elongated.
Geogrid Reinforcing Fabric Plastic Uniaxial Geogrid Feature:
(1)High unidirectional tension resistance, good creep resistance and stable chemical nature.
(2)It has large friction factor with sandy stone.
Plastic Uniaxial Geogrid made by HDPE and PP Material Specification:
| Plastic Uniaxial Geogrid made by HDPE and PP Material | |||||||
| Item | HT50 | HT65 | HT80 | HT100 | HT120 | HT135 | HT160 |
| Raw material | HDPE and PP | HDPE and PP | HDPE and PP | HDPE and PP | HDPE and PP | HDPE and PP | HDPE and PP |
| Carbon Content(%)≥ | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
|
Tensile Yield Strength (KN/M) ≥ |
50 | 65 | 80 | 100 | 120 | 135 | 160 |
| Yield Strength at 2% elongation (KN/m) | 14 | 18 | 23 | 29 | 35 | 39 | 47 |
| Yield Strength at 5% elongation (KN/M) | 27 | 35 | 44 | 55 | 65 | 74 | 85 |
| Yield elongation ratio (%) ≤ | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
|
Maximum creep Strength (KN/m) |
21 | 25.5 | 31 | 39 | 46 | 51 |
60 |
