Safe Paper Making Machine Parts Cylinder Dryer High Precision 120KN / M Linear Pressure
Paper Making Machine Dryer Cylinder diameter 3660mm, width 5600mm
Huatao Dryer cylinder made by MQJK 84200 x 100 CNC, the numerical grinding machine, is more effcient, accurate and safe. It can be used to grind rollers with diameter up to 2000mm, length up to 10000mm, It can be employed to grind the roller of cylindrical, conic, convex (concave) surface, etc. Dryer cylinder machining parameter is as follows:
Roundness: 0.001~ 0.003mm,
Cylindricity: 0.001~ 0.003mm/m,
Form: derivation: 0.001~ 0.003mm,
Surface roughness: Ra0.1μm, thus the customers’ requirements of high standard and precision can be satisfied.
| Model | Diameter (mm) | Design Speed | Trim width | Max Linear Pressure | Max Steam Pressure |
| 12FT | 3660 | 2200 MPM | 5600 mm | 120KN/M | 1.0 Mpa |
| 15FT | 4572 | 2200 MPM | 5600 mm | 120KN/M | 1.0 Mpa |
| 16FT | 4876 | 2200 MPM | 5600 mm | 120KN/M | 1.0 Mpa |
| 18FT | 5486 | 2200 MPM | 5600 mm | 120KN/M | 1.0 Mpa |
| 22FT | 6706 | 2200 MPM | 5600 mm | 170KN/M | 1.0 Mpa |
| 24FT | 7315 | 2200 MPM | 5600 mm | 170KN/M | 1.0 Mpa |
CASTING
With two sets of MF induction furnaces (20t/h & 10t/h), resin-bonded sand molding production line of 20t/h, and the Japanese on-the-spot analyzer, which can guarantee the quality of castings. This casting shop is also equipped with 2 bridge cranes of 12m heigth & 50tons weight maximun, and dozens of pits of 12m depth and other auxiliary facilities.
RESIN SAND APPLIED
The resin sand casting is the most populay and advanced technique of casting in the world, it can produce higher quality than the standard formulated by the country and industry, no matter for apperance or inherence.

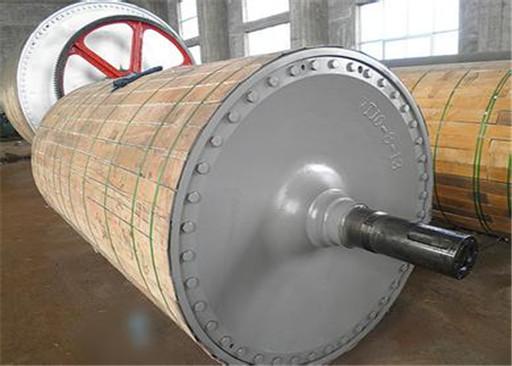

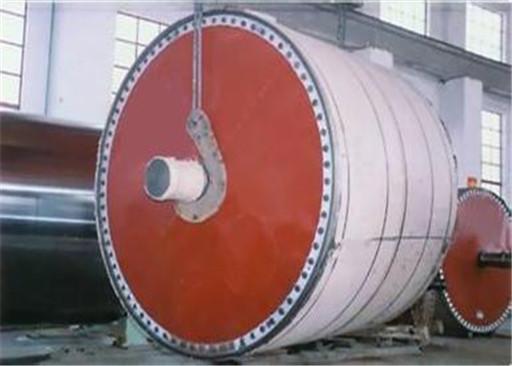

Product Pictures:
