Air Cushion Headbox Paper Making Machine Parts Stainless Steel Description
The purpose of headbox is to take the stock delivered by the feed pump and transform the stock flow into an even, rectangular discharge equal in width to the paper machine and at a uniform velocity, consistency and pressure in the machine direction. Since the formation and uniformity of the final paper product are dependent on the even dispersion of fibers and fillers, the design and the operation of the headbox system are absolutely critical to a successful paper making.
Air Cushion Headbox Paper Making Machine Parts Stainless Steel Appliction & Future
The Head box serves three important functions in the paper production process. If the Head box does not perform acceptably in any of these three functions, the quality of the paper produced will be greatly diminished.
1. Spread the stock evenly along the width of the paper machine.
2. Accelerate the stock up to the machine operating speed.
3. Suspend the pulp fibers throughout the outgoing slurry.
Air Cushion Headbox Paper Making Machine Parts Stainless Steel Main Technical Parameters
| Trimmed Width (mm) | 3200 | 3600 | 3800 |
| Width of Jet (mm) | 3350 | 3800 | 4050 |
| Work Speed (m/min) | 200-300 | 200-300 | 200-300 |
| Diameter of holy roll (mm) | 220 | ||
| Cloth Paste Way | Square taper pipe into the slurry,cloth pulp by the organic glass holey plate | ||
| Outline size (m) | 2.6*4.4*1.6 | 2.6*4.4*1.6 | 2.6*5*1.6 |
| Arrangement | Left or right hand machine | ||

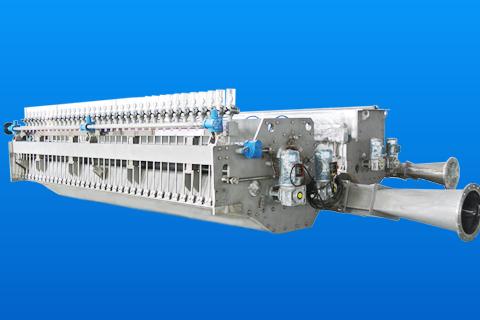

Air Cushion Headbox Paper Making Machine Parts Stainless Steel Pictures
