Pulp Mill Machinery Waste Paper Pulp Thickening And Washing Inclined Screw Thickener
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 days
Brand:
HUATAO
Product Description

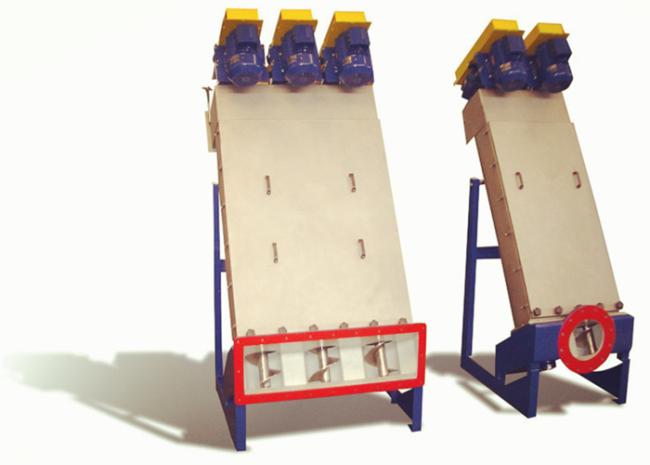

Pulper Machine - Waste paper pulp thickening and washing Inclined Screw Thickener
Main components:
The inclined spiral concentrating unit is mainly composed of a feed taper pipe, a base, a box body, a spiral main shaft, a filter tube, a cover plate, a reduction box and a motor.
| Nominal filtrating area(m2) | 1x1 | 1x2 | 1x3 | 1.5x2 | 1.5x3 | 2x3 |
| Concentration of input pulp% | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 |
| Concentration of output pulp% | 10-14 | 10-14 | 10-14 | 10-14 | 10-14 | 10-14 |
| Production capacity(t/d) | 12-20 | 25-40 | 35-60 | 40-60 | 60-90 | 100-130 |
| Motor power(kw) | 4 | 4X2 | 4X3 | 7.5X2 | 7.5X3 | 11X3 |
Application:
Inclined screw thickener widely used for thickening and washing all kinds of pulp
Features:
Special-type screw and brush; strong self-cleaning ability of filtering drum; high discharge consistency.
For different pulp kinds and different consistency range, the hole dia. of filtering drum is different, which is beneficial to reducing loss of fiber.
