316l Johnson 1mm Slot Wedge Wire Filter Mesh Stainless Steel

Price Negotiable

Price: Negotiation

MOQ: 1pcs

Delivery Time: 7-10 work days,according to the quantity

Brand: Heng Yuan

Product Description

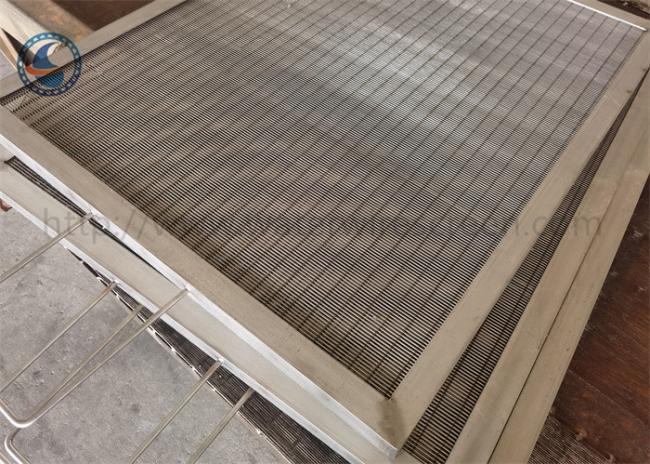

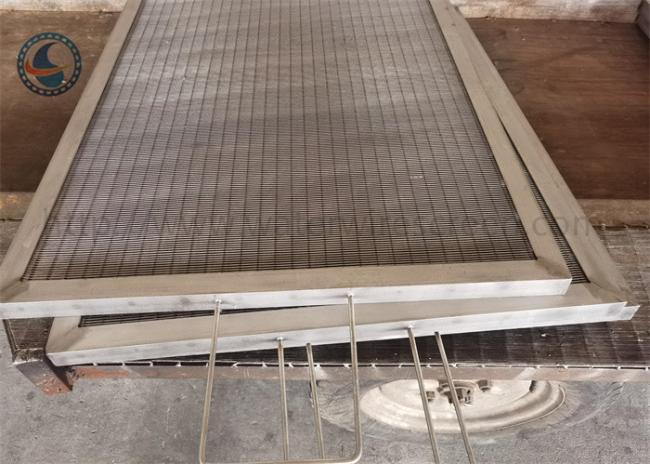

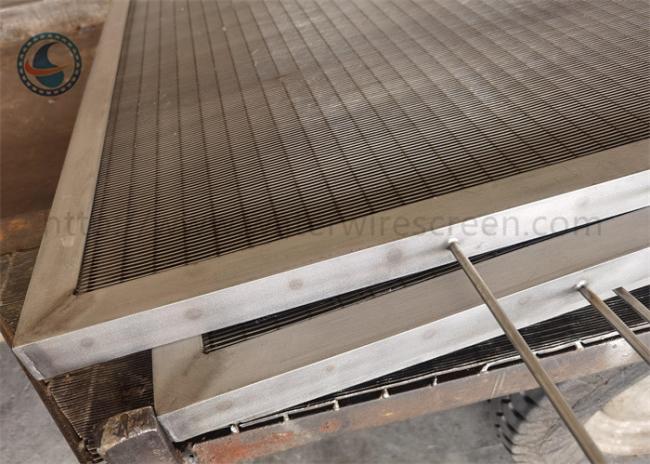

SUS 316L Johnson 1mm Slot Wedge Wire Screen FIlter Mesh

characteristic

Simple and dependable eccentric type system.
High screening capacity.
High durability.
No transmission of screen panels.
Ready changing of screen plates.
Rigid and vibrating resistance screen body.
long service life
high opening rating
Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Surface profiles	Support profiles	Min.diam. in mm	Min. slot width in mm
10S	Q25	21	0.10
11S	Q20 or Q25	23	0.030
12S	22S	30	0.050
12S	Q25	23	0.030
12S	Q35	30	0.050
18S	22S or Q35	30	0.050
18S	Q25	25	0.030
18S	D45	300	0.20
18S	10x3	300	0.20
22S	22S or Q35	45	0.10
22S	D45 or 10x3 or 25x3	300	0.20
28S	Q35	215	0.20
28S	D45 or 10x3 or 25x3	300	0.20
34S	Q35	300	0.20
34S	D45	300	0.20
34S	10x3 or 25x3	300	0.20
42S	Q35 or D45	300	0.20
42S	10x3 or 25x3	300	0.20

Remarks:

1. Make tubes with different material according to user requirements.

2. Slot should be bigger than 0.025mm and less that 3000mm long.

Parameters:

Gap (mm) : 0.02, 0.025, 0.03, 0.04, 0.05, 0.06, 0.08, 0.10, 0.15, 0.2, 0.25, 0.30-35, can also be made according to customer requirements

Material: low carbon steel, low carbon steel galvanized, stainless steel (304, 316L, Hastelloy, etc.)

Length: 100-4000 - mm

Width: 100-4000 - mm

Screen specifications: conventional 0.75*1.5mm, 1*2mm, 2*3mm, 2.3*3mm, 3*5mm

Applications:

1. Mining machinery: used for sand settling and dewatering coal preparation in coal preparation plant.

2. Malt machinery: suitable for malt mill grinding machine, floss machine, drying box, etc.

3. Beer machinery: applicable to beer brewery filter tank, high opening rate, long service life.

4. Chemical industry: used for sugar mill, paper mill wastewater treatment; Filtration, dehydration and supporting use of various coatings in fertilizer plants; Starch filtration in food factory;
