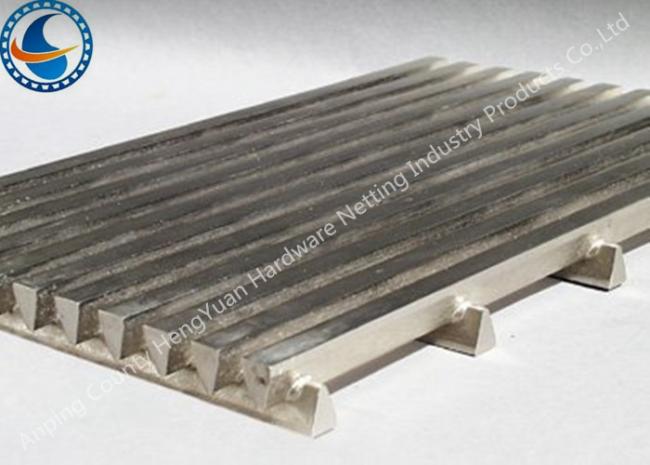

304 Flat Stainless Steel Wedge Wire Screen Panels Anti Corrosion 0.2mm Slot
304 Flat Stainless Steel Wedge Wire Screen Panels Anti Corrosion 0.2mm Slot
wedge wire screens and profile screens are all customs made.
Length, width, shape, and spacing of profile wire are engineered to meet your special job requirements.
And the individual wire on the working surface of the wedge wire screen or stainless steel screen can be manufactured at various angles to better serve your needs.
Our wedge wire screen sieves, baskets, flat panels and cylinders are used in a wide variety of industries to support, beautify, dewater, decline, drain and rinse, classify wet/dry, strain, filter, dry and cool.
Here is conventional size :
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 6000mm | ||||||
| Width Range | Up to 6000mm | ||||||
| Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 1.0x2.0 | 1.2x2.0 | 1.5x2.0 | 2.0x3.0 | 2.2x3.5 | 3.0x4.6 | 3.0x5.0 |
| Support Rod | 2x3 | 2x3 | 2x3 | 2x3 | 3x4.6 | 3.0x4.6 | 3.0x5.0 |
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
| Note | Customized according to the requirement | ||||||
Applications of wedge wire screen panels
Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:
- Vibrating screen decking.
- Surface water intake screens.
- Fish diversion screen panels.
- Hatchery screens.
- Grain drying screen.
- Malt kin or germination floors.
- Decorative materials.
Contact me :hengyuan1@aphywire.com Skype:songcc0209
-------------------------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen etc.
