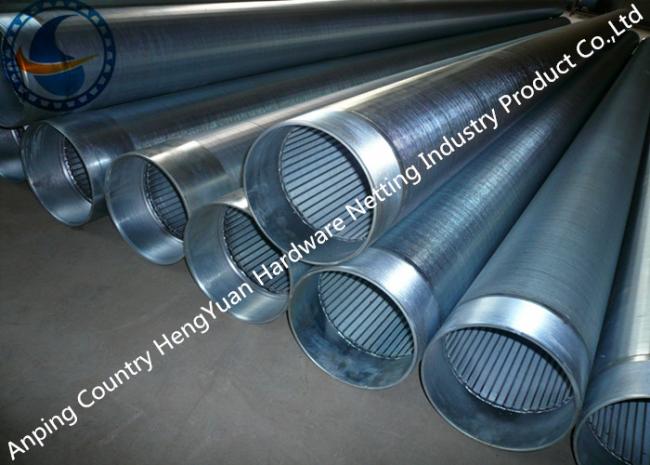

High Mechanical Strength Johnson Wire Screens , Point Welding Wedge Wire Mesh
Mechanical Strength Johnson Wedge Wire Screens Downhole Slotted Tube Low Pressure Drop 10-3000mm Length
V-Wire/wedge wire Screen Specifications:
- Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.
- Diameter available: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”.etc
- Open area: up to 60%.
- Material: low carbon, low carbon galvanized steel (LCG) stainless steel (304).
- Lengths up to 6 meters.
- Diameter: ranging from 25 to 2000mm.
- End connection: plain beveled ends for butt welding or threaded.
V-Wire/wedge wire Screen Application:
V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.
| Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
If you have any enquires please feel free to contact us !
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country , Hebei Province , China.
Our mainly products are : stainless steel vee sharped wire / wrap wire,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen,screen nozzle / water and gas strainer ,sieve plate ,slot mesh ,ARC screen ,header and hub laterals & hub radial laterals , pipe base , crimped wire mesh / stainless steel wire mesh / perforated wire mesh etc .
