Professional Wedge Wire Screen For Chemical / Pharmaceutical Industry
Professional Wedge Wire Mesh Non - Clogging Stainless Steel / LLG Material

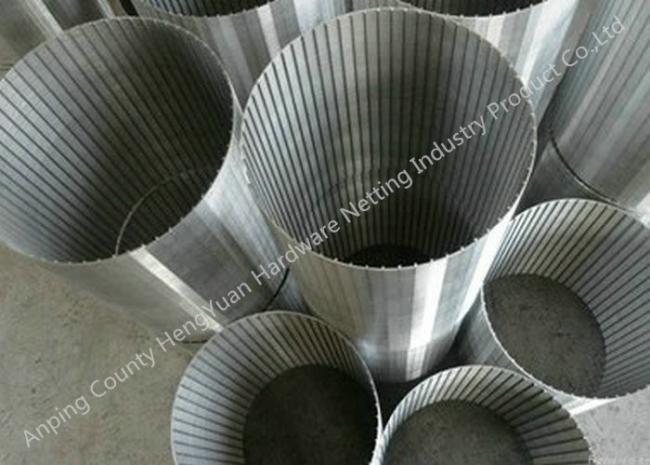

Wedge Wire Screen Pipe Introduction :
Wedge wire screen , made of welded as well as loop profile wires, can be produced in varous shapes; according to the particular technological application, it is possible to produce various wedge wire cylinders, baskets and other shaped wedge wire areas which are irreplaceable at dehydration, thickening, filtration and separation processes, for example in the sugar industry and many other food industries (breweries, chocolate factories, meat industry etc.), in the chemical, pharmaceutical and processing industries (as so called passive filters, reactors, candle filters etc.) and in many other compactor processes, for example compactors of coal and other solid minerals and raw materials, thickening suspensions and mud in sewage treatment plants etc.; the screens have an extremely strong construction, high aperture accuracy of cylindrical design in the axial and radial directions and plain outside or inside working area; this is the only possible technical solution for many technological processes (centrifugal machines, gravity dewatering and defecation machines etc.)
Wedge Wire Screen Pipe Basic Parameters :
| Wedge Wire Screen Pipe | ||
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 |
|
| Specification (support rods): | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 |
|
| Note: other wires and rods available upon request | ||
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 25-1200mm | |
| Screen ends | No ends | |
| Other sizes available on request. | ||
|
Advantage
|
Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs |
|
Contact me :hengyuan3@aphywire.com Skype:cherryhan09
-------------------------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
