Wear Resistant Stainless Steel Wedge Wire Mesh With High Bearing Capacity
Stainless Steel Wedge Wire Mesh High Capacity Filter With Flange And Weld Rings
Johnson Wire Screen Features:
1: easy to leak,
2: wear-resistant, corrosion-resistant.
3: The mesh section is triangular.
4: The gap is narrow at the top and wide at the bottom, the screen seam is uniform, the welding quality is stable,
5: the opening rate is high,
6: the service life is long,
7: it has high strength, rigidity and bearing capacity.
Johnson Wire Screen Introduction
Wedge wire screen are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube.
This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required.
Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.
Material: Low Carbon,Low Carbon Galvanized,Stainless Steel etc.
Diameter:29-1300mm
Slot size (mm):0.02-100
Length: upto 6 meters

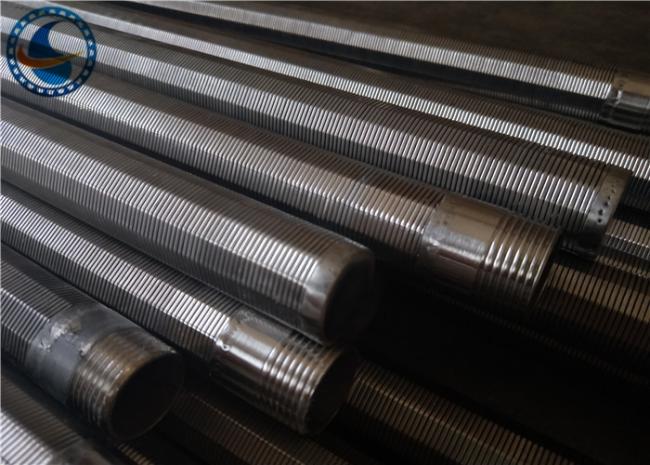

End connection:male/female threaded couplings Or welded rings/plain beveled ends etc.
| Outside Diameter (mm) | Length (mm) | Slot (mm) | Styles of connection(mm) |
|
29,38,42,57,63,76,89,108,150, 168,320,600,900,985,1000 etc |
1000,2000,3000 4000,5000,6000 |
0.02,0.1,0.25,0.5,1.0 2.0, 5.0,10 |
weldedrings,male/female threaded coupling ,flange,closed up. |
| Explanation | diameter:29-1300mm | length 100-4000mm | low carbon galvanized,stainless steel |
