0.5mm Slot Sus304 Flat Johnson Screens With Round Support Bar
Stainless Steel 304 Johnson Flat Screens With Round Support Bar
Johnson Flat Screens Description:

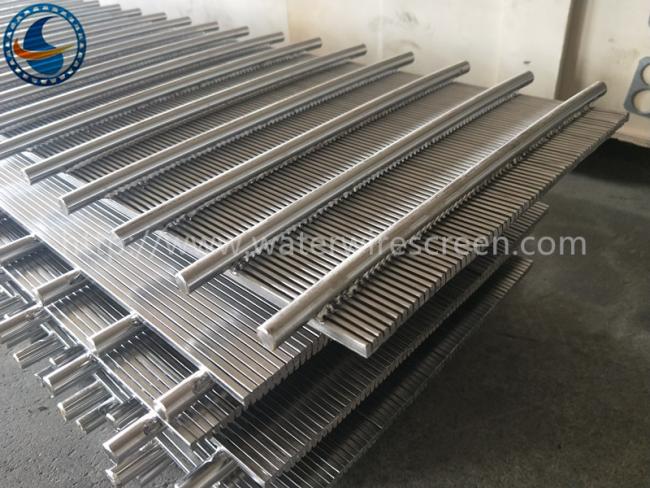

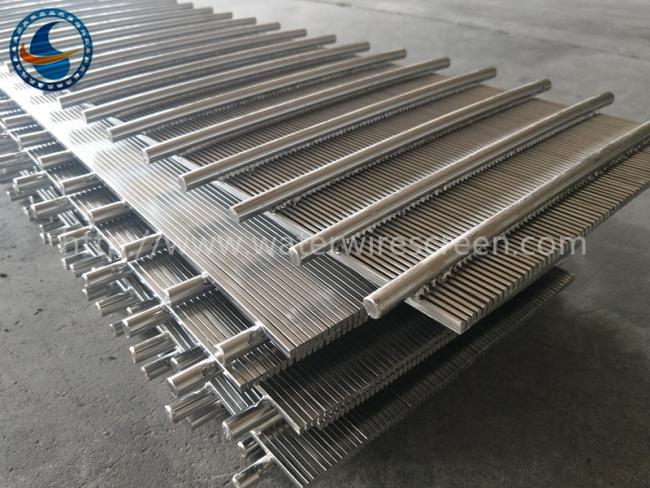

Johnson Flat Screens are welded by Vee-shaped wire and round support rod.
There is a fixed value slot between each v wire.
Johnson Flat Screens Specification:
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 1217*297mm |
| Slot Size | 0.5 mm |
| Width | 297mm |
| Length | 1217mm |
| Type | Screen flat |
| Wire size | 3*5 mm |
| Support rod | ø10 mm |
| Wire shape | V shape |
Johnson Flat Screens Regular Specifications:
Material: Stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 3150mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod:ø10mm round bar
Special specification can be made according to your need.
