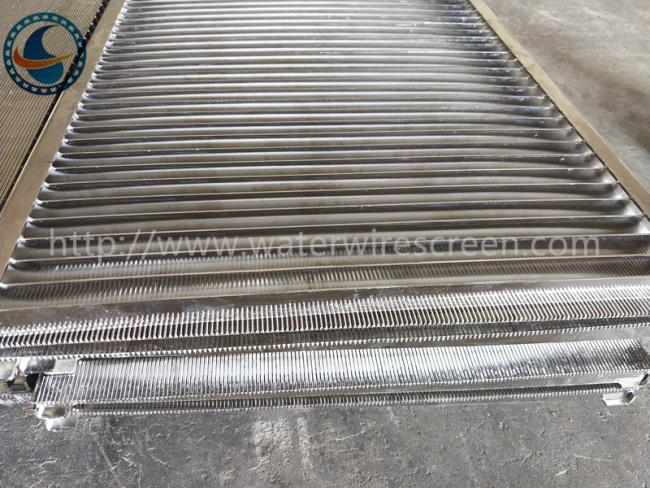

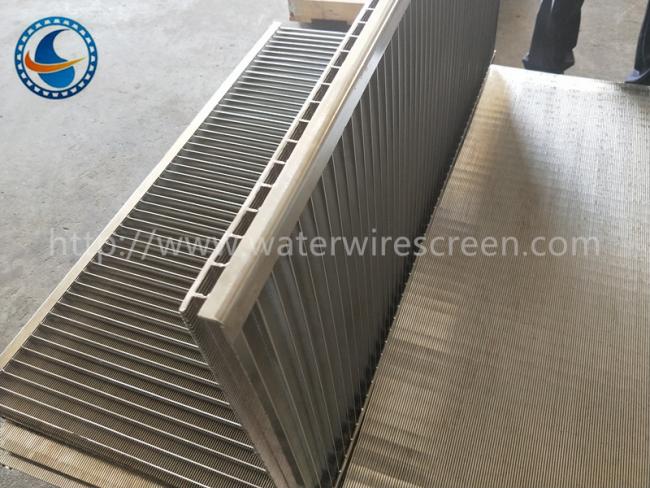

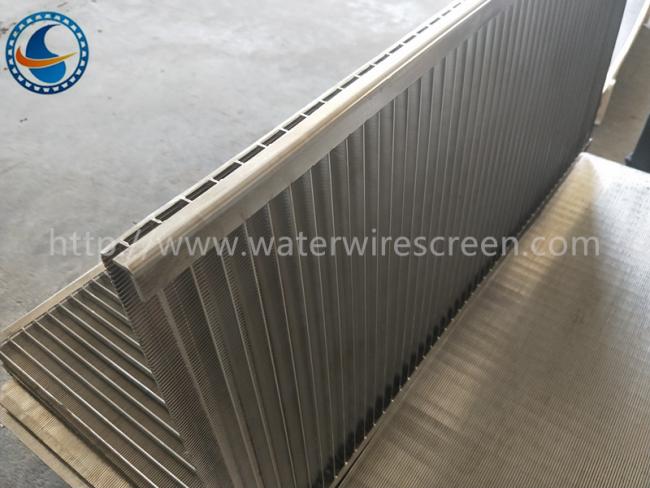

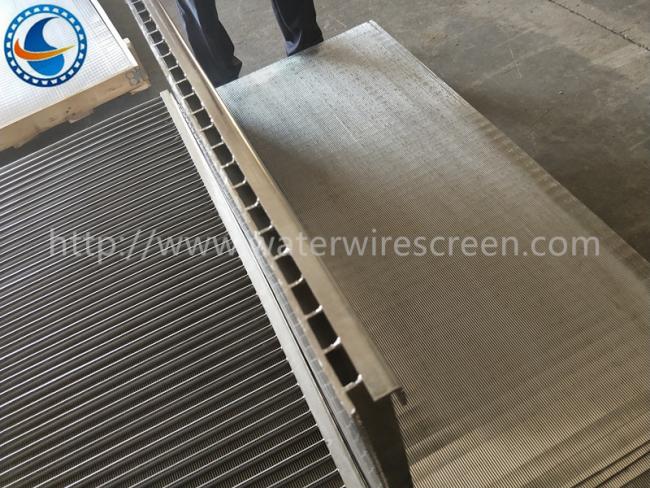

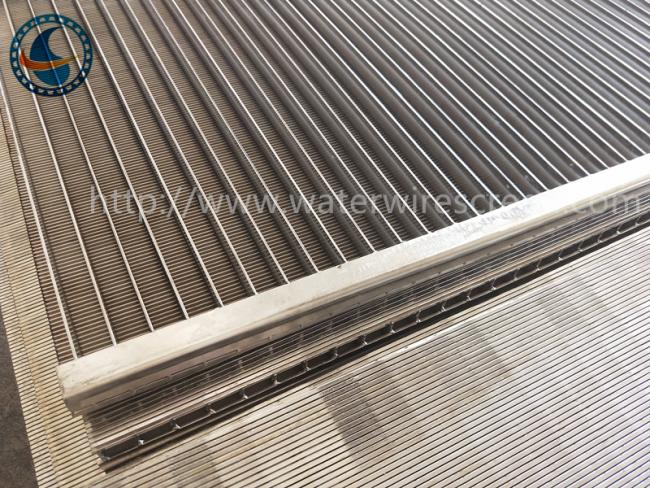

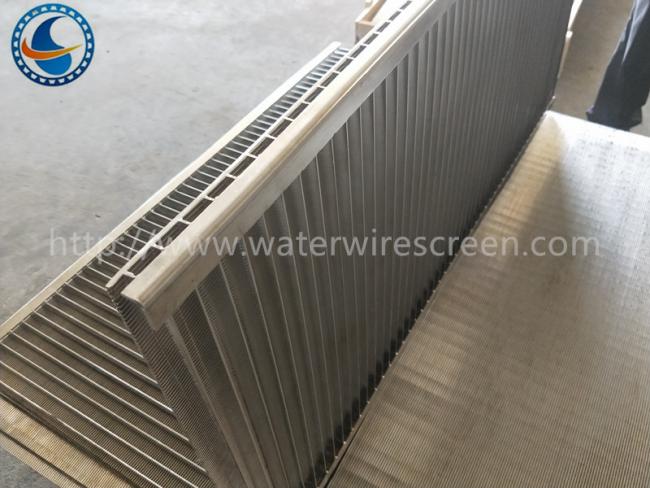

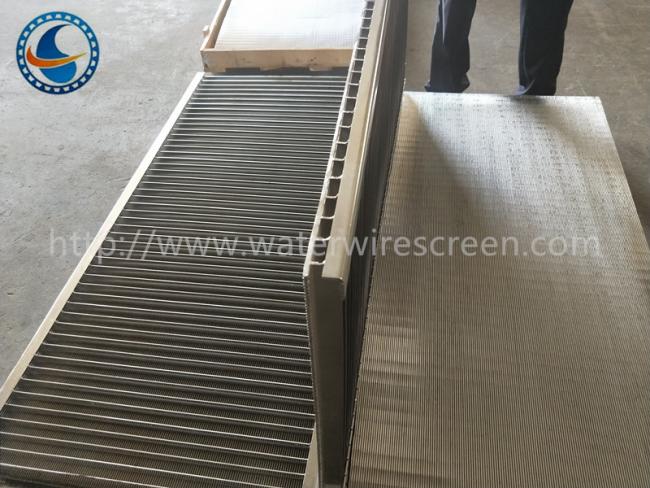

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

Wedge Wire Screen Panels Description:

Wedge Wire Screen Panel is welded by V wire and support rod.

There is a fixed value slot between each v wire.

The support bar can be a round wire or a triangular wire or a trapezoidal wire.

Wedge Wire Screen Panels Specification:

Wedge Wire Screen Panels Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: width up to 4000 mm

                    Length up to 4000mm

Specification of the wrap wire:1*2 mm,  2*3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Wedge Wire Screen Panels Feature:

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Wedge Wire Screen Panels Advantages:

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.
