304 Stainless Steel Wedge Wire Screen Slot 40 60 80
Factory Price 304 Stainless Steel Wedge wire screen Slot 40 60 80
Product Description:
Hengyuan Factory Price 304 Stainless Steel Wedge wire screen Slot 40 60 80 also be named :
Vee-Wire screen pipe,Continuous slot Vee-wire screen tube,Wire wrapped screen,Wire wound screen,water filter.
Related products :
v wire water well screens , wire wrapped screens pipe , Johnson Screen , welded wedge wire screen , reversed slot screen , continuous slot pre-pack , water filter , screen cylinders , stainless steel slot tube , reverse rolled screen , strainer pipe , continuous slot wire wrap well screens , pipe base well screen , ribbed-type wire wrapped screen , stainless steel or low carbon galvanized or mild steel wire screen , wire wrapped liner , woven wedge wire screen , slot wire screen tube , well screen , strainer screens , well point screens , oil screen tube , etc
Specificarion:
| Profile wire |
Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
|
||
| Diameter(mm) |
89mm ( Less than 1027mm)
|
Length(mm) | 5500mm, (Less than 6000mm long) |
| Open area |
Large open area
|
Efficiency | High |
| Material |
Stainless steel 304 316 monel, hastelloy inconel nickel etc..
|
Function | liquid filtering / liquid solid separation |
| Quality control system | Factory own control | Cleaning way | Filter from outside to inside, easy to clean |
| Support rods |
Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00
|
End connection | Commen fittings, NPT ,BSP end fittings, calculate price seperately |
| Min slot size |
50 micron
|
Thickness | 3-10mm |
| Length |
5500mm
|
Filter Rating | up to 90% |
| Color |
Silver(metal original color)
|
Technique | Belgium welding |
Characteristic:
Wedge Wire Screen Pipe Filter Mesh Stainless Steel Wire Johnson screen have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
Regular Specification:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Use:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.

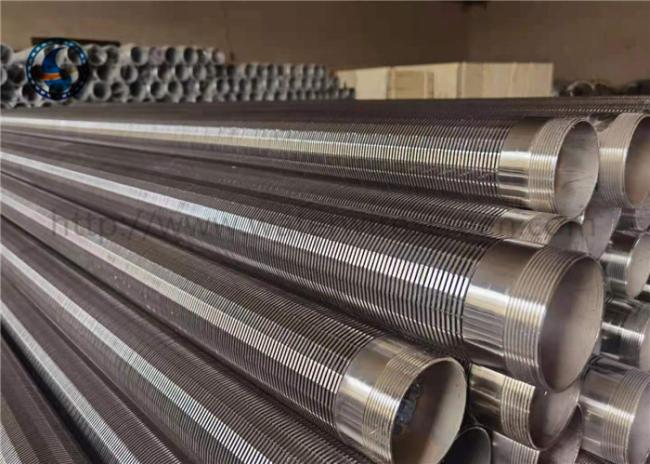

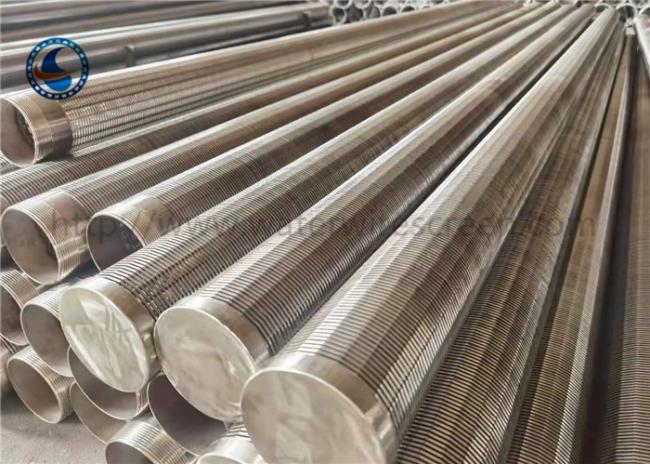

Pictures:
