Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube

SS 304 Downhole Slotted Tube Strong Corrosion Resistance

Downhole Slotted Tube Regular Specification:

Profile wire:

Width(mm): 1.0, 1.5, 2.0, 2.3, 3.0, 3.2,

Height(mm): 1.5, 2.0, 2.5, 3.5, 4.6, 6.0

Support rods:

Width(mm): 2.0, 2.2, 2.3, 2.5, 3.2

Height(mm): 2.5, 3.0, 3.5, 4.6, 6.0

Round rods : diameter from 2.50 mm to 6.0 mm

Note: other wires and rods available upon request

Slot size(mm): 0.10, 0.25, 0.70, 1.0, 2.0, 5.0 ... 45mm also achieved upon request.

Diameter(mm):48, 63, 89, 117, 168, 219, 273, 325, 500, 800, 1000

Length: up to 6 meters.

End connection: Plain beveled ends for welding or threaded male &female coupling(spiral).

Other sizes available on request. Deep well construction specifications available on question.

Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.

Downhole Slotted Tube Specificarion:

Downhole Slotted Tube Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Downholde Slotted Tube Use:

Downhole Slotted Tube has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

water well

water supply systems

Refining & petrochemical

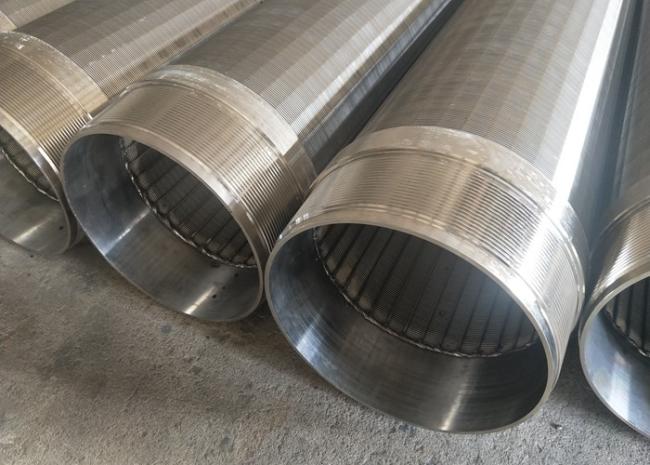

Downhole Slotted Tube Pictures
