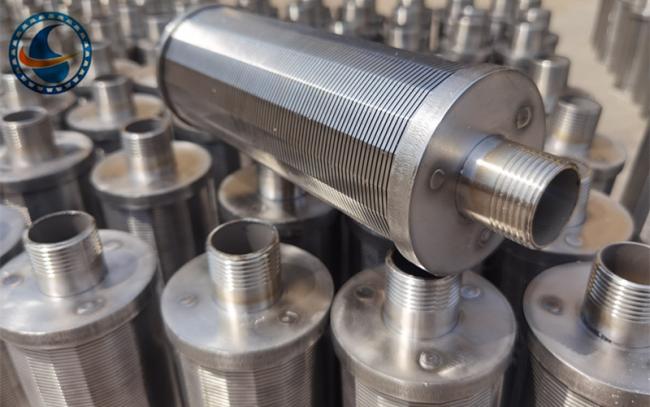

0.5mm Slot Stainless Steel 316l Wedge Wire Screen Nozzle With 1" Male Threaded

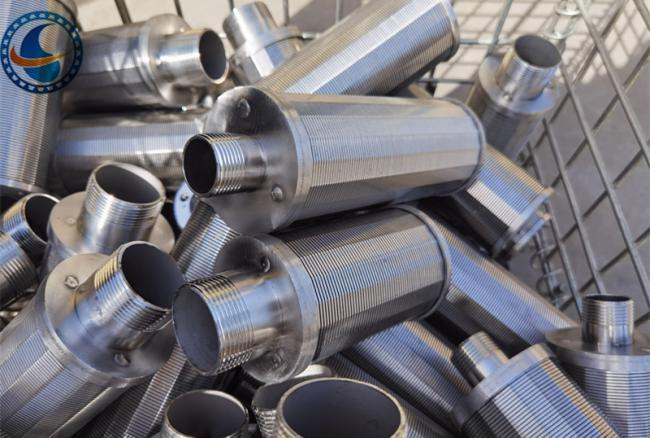

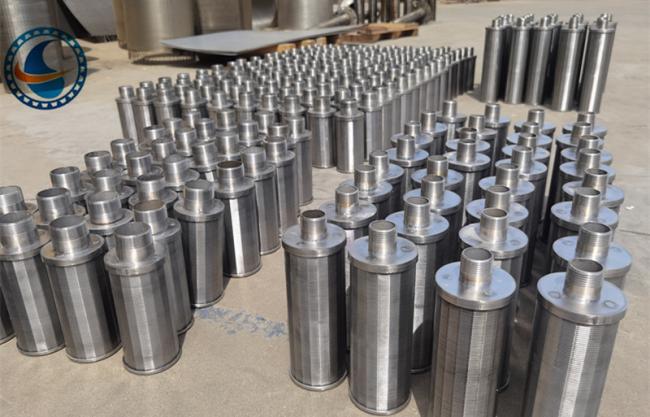

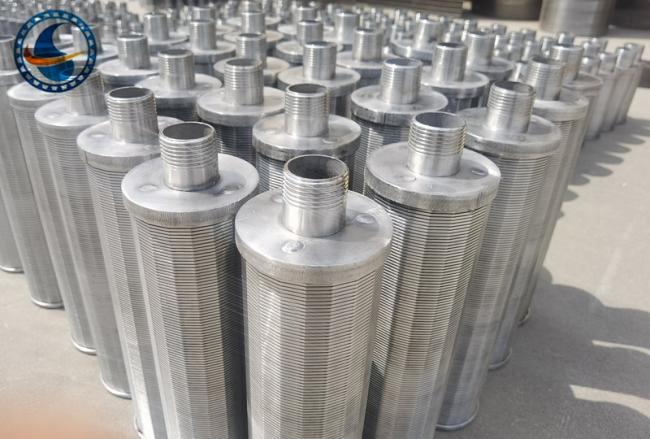

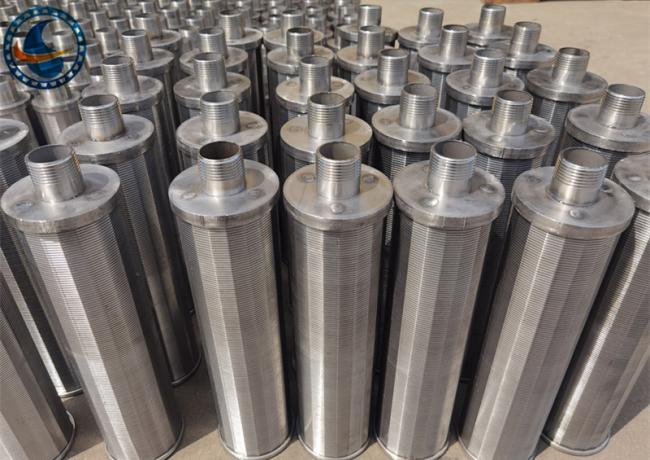

Stainless Steel 304 Wedge Wire Water Cap
Wedge Wire Water Cap Information:
Water cap is widely used in power plant (ion exchanger), coal, metallurgy, papermaking, food and other industries in the water treatment of coarse and fine filtration.
Wedge Wire Water Cap Sizes:
Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment)
Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)
Slot size: 0.04" - 0.3"
Length: Up to 6000mm
Diameter: 1" - 48"
Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water treatment, sand filter, water softening, desalination.
Wedge Wire Water Cap Types:
1. Single head filter nozzle
2. Double head filter nozzle Long handle filter nozzle
3. Double flow filter nozzle
4. Flatwater filter nozzle, etc.
Wedge Wire Water Cap Normal Sizes:
|
(NO.) |
(Type) |
(Ton) |
(Slot)(mm) |
(Size) |
0.2-0.25mm slot opening area of through-flow |
|||
| D | H | L | M | |||||
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
