Stainless Steel Curved Wedge Wire Screen Filter

Curved Wedge Wire Screen Filter Introduction:

Curved wedge wire screens facilitate inexpensive and easy solid-liquid separation of stones, sand, fibers and organic elements.

The simple functional principle is based on the curved shape of the screen.

The materials slide along the screen surface by means of gravity while the liquid passes through the screen.

Due to the use of wedge wire screen technology, bow screens are a durable and low-maintenance screening element.

Curved Wedge Wire Screen Filter Specification:

Material:stainless steel 201, 304,316L, or Duplex steel 2205, 2507 etc.
Slot size(Opening):0.025-100mm or customer's requirement.
Support bars pitch:10-20mm or customer's requirement.
Wedge wire size:1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 2.2*3.5mm, 3*4.6mm etc.

Support rod size: 2*3mm,3*4.5mm, 3*5mm, 3*6mm etc.

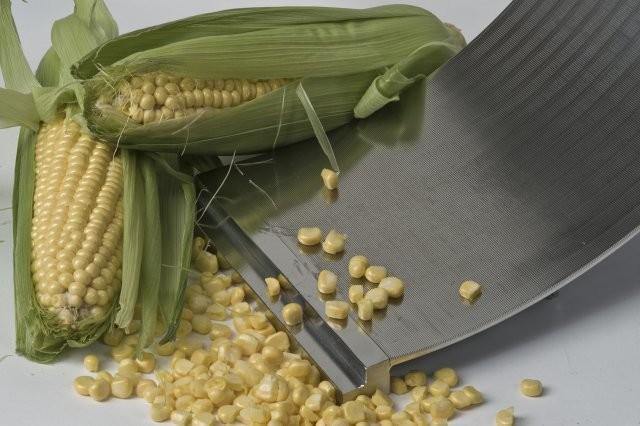

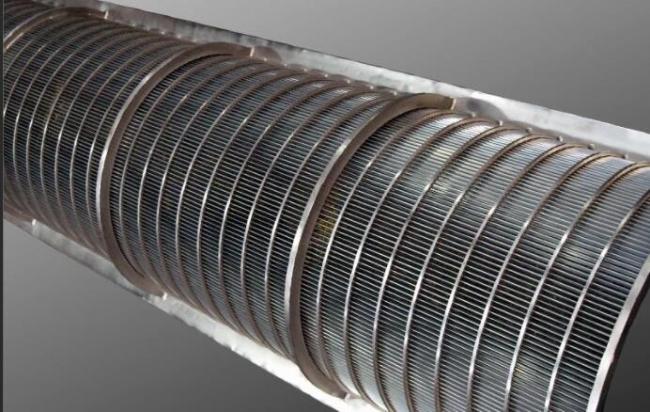

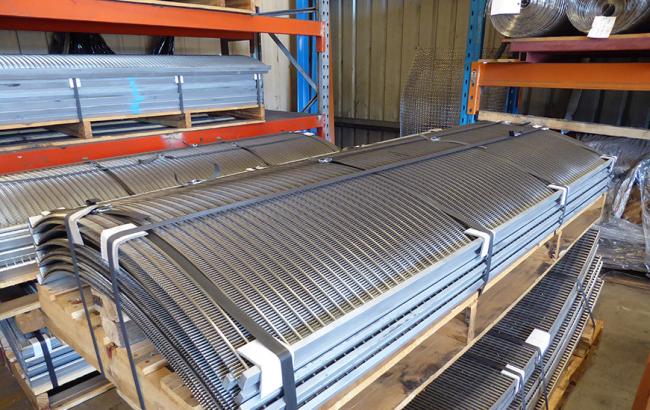

Curved Wedge Wire Screen Filter Pictures:
