12.7mm Aluminum Finned Tube Heat Exchanger For Freezer
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
3-15 days for 1-5 sets
Brand:
OEM/ODM
Product Description

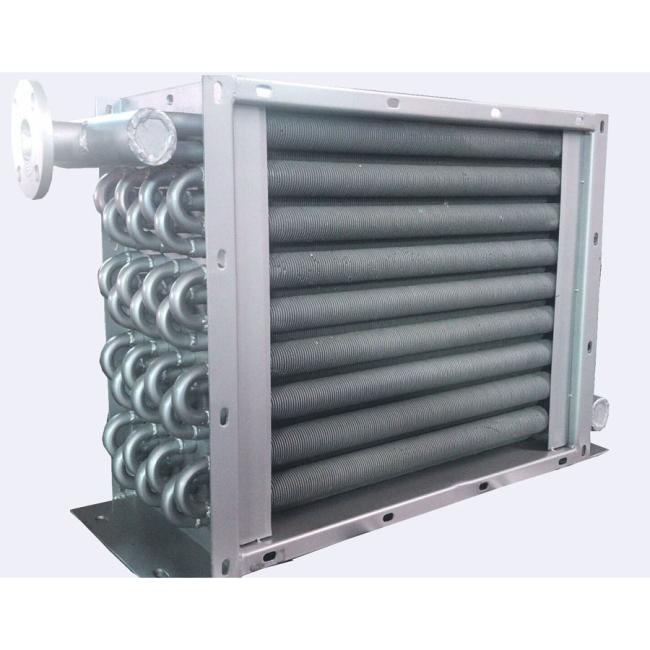

12.7mm Aluminum Finned Tube Heat Exchanger For Freezer
Specification
| Item name | 12.7mm Aluminum Finned Tube Heat Exchanger For Freezer |
| Description | Heat exchanger, Air cooler |
| Cooling Medium | Air,Oil,Water or other liquid |
| Material |
Tube:Copper,Carbon/ Alloy steel,Stainless steel,Titanium Fins:Copper,carbon steel,Stainless steel or Aluminum |
| OD | 7-19.8mm |
| WT | 1.2-20mm |
| Min.Order quantity | 1 set. |
| Delivery time |
Depends on the specific orders,normallywithin 40days. If you have drawings,it will be better for us to offer you.Please send it by email |
1, Quick Details
Liquid Flow Rate:0.1~10 M/s
Maximum Working Pressure:1.6Mpa
Weight:100-5000kg
Applicable Industries:Industry
Condition:New
Place of Origin:Jiangsu, China
Structure:Fin Tube Heat Exchanger
Voltage:No request
Dimension(L*W*H):Customized made
Certification:CE
After-sales Service Provided:Overseas third-party support available, Free spare parts, Video technical support, Online support
Tube material:carbon steel/stainless steel
Fin material:carbon steel/stainless steel/aluminum
Frame material:carbon steel/stainless steel
Working temperature:150~350℃
Warranty: 1 Year
2, Materials of the heat exchanger
- Tube Φ12.7(1/2”), Φ15.88(5/8”), SS304/SS316/SS316L
- Wall thickness: SS304 t0.6, SS316L t0.9
- Fins: Aluminum, bare or hydrophilic coated, t0.15～0.30; SS304 t0.2～0.30
- Fin pitch:Φ12.7 (1/2”)tube, F.P1.8～6.35mm; Φ15.88 (5/8”) F.P2.5～12.0mm
- Fin shape: surface sine wave /Plat, edge shape: straight or Corrugated Wave
- Metal sheet: Stainless steel plate.
- More details according to the drawing or specifics of customer.

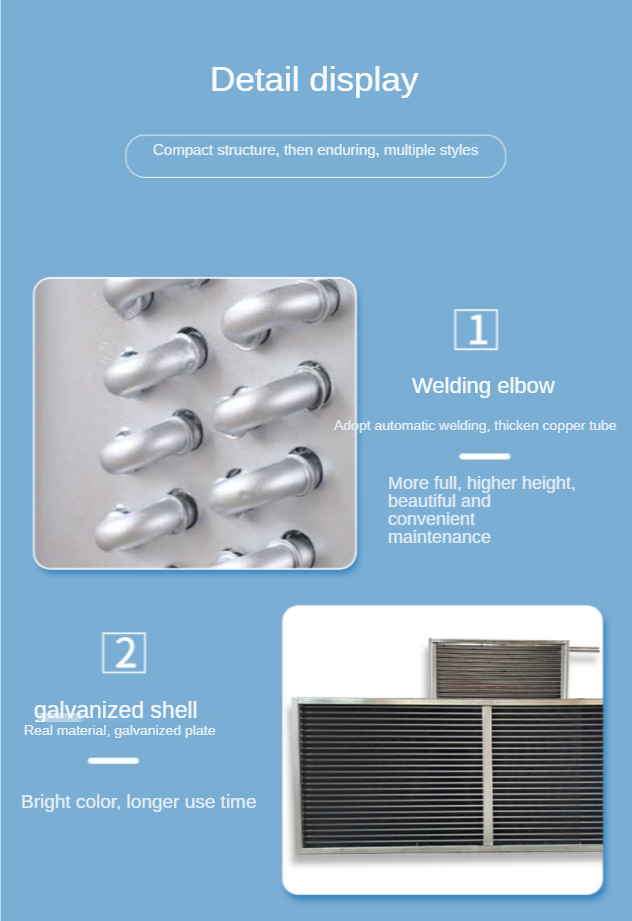

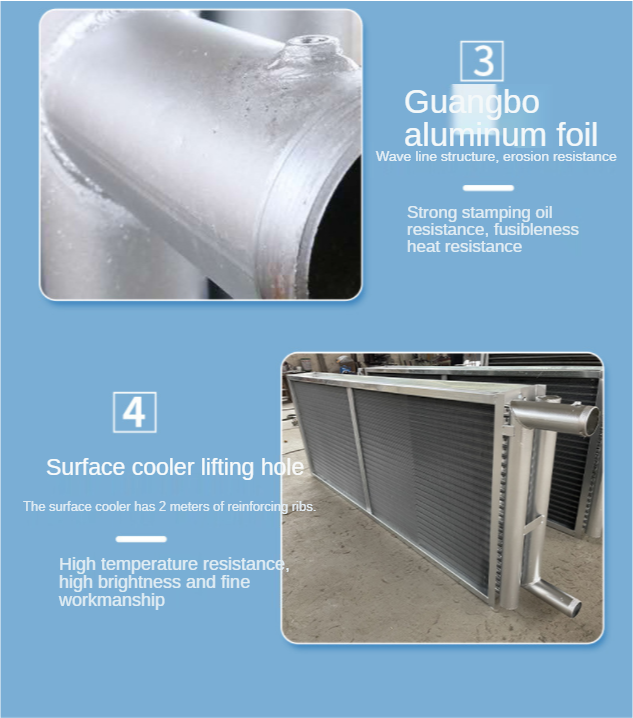

Detailed image
