Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
3-15 days for 1-5 sets
Brand:
OEM/ODM
Product Description
Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump
Specification
| Model | Heating Capacity(KW) | Cooling Capacity(KW) | Water Flow(m3/h) | Water Resistance |
| ADTZ-1.0 | 3.5 | 3.0 | 0.6 | <40 |
| ADTZ-2.0 | 7.5 | 6.5 | 1.3 | <55 |
| ADTZ-3.0 | 9.9 | 8.5 | 1.7 | <60 |
| ADTZ-4.0 | 13.6 | 11.8 | 2.4 | <40 |
| ADTZ-5.0 | 17.5 | 15 | 3.0 | <45 |
| ADTZ-6.0 | 20.8 | 18 | 3.6 | <55 |
| ADTZ-7.5 | 26 | 22.5 | 4.5 | <40 |
Product Introduction

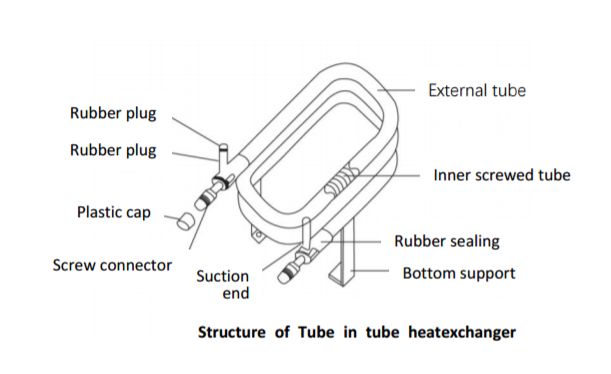

Coaxial Heat Exchanger consists of one inner twisted tube and one outer tube.Heat and cold liquid seperately flow in inner tube and between yubes for heat transferring.Its advantages:pressureproof,quakeproof,antideformed,dirtyproof,oil returning smoothly,safe and high-quality,leakproof,convenient,resonable price,well applied into teat pump system. The space between the inner tube and outer tube is cut evenly,which is good to oil returning as evaporator.Due to good properties,it is widely applied into cold water units,air-cooled chiller,water-source or ground-source heat pump,heat-recovery units,heat pump for hot water,airconditioner in vessel etc.
Tube in tube(Coaxial) heat exchanger
