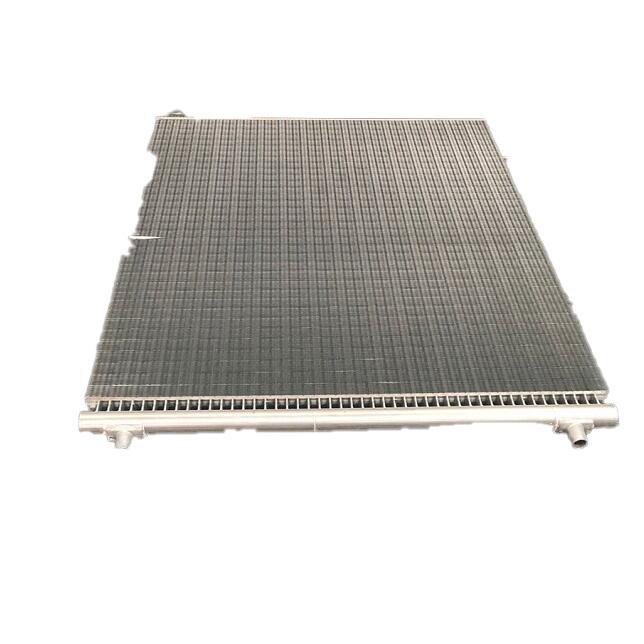

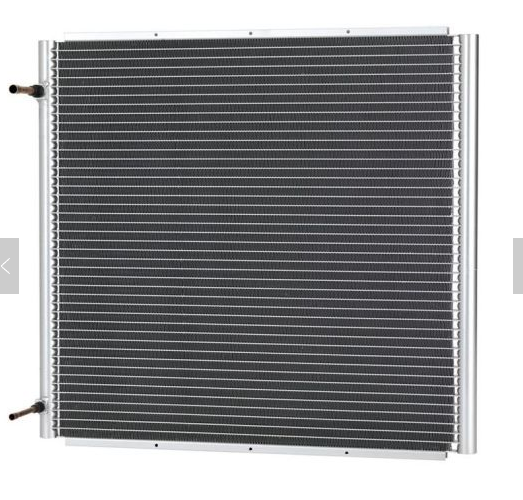

50 M3/H Microchannel Heat Exchanger , All Aluminum Air Conditioner Heat Exchanger
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
20-25days
Brand:
OEM/ODM
Product Description
50 M3/H Microchannel Heat Exchanger , All Aluminum Air Conditioner Heat Exchanger
Specification
| Product name |
50 M3/H Microchannel Heat Exchanger , All Aluminum Air Conditioner Heat Exchanger |
| Fin material | Aluminum/Brazed/Copper/Titanium/Gasket |
| Fins type | Plain,serrate,louver,perforated and corrugated forms are typical |
| Voltage | AC220v/380v/customized ,50Hz/60Hz |
| Packaging | Pallet ,export wooden case or customized required |
| Warranty | 1 Year |
| Delivery time | air delivery 7-10days,sea delivery 20-30days |
| Payment Terms | T/T, L/C |
| Certification | CE,ROHS ,ISO9001,ISO14001 |
| Application |
Air-conditioner products,Water chiller system,Fridge, freezer products,Cold storage buliding system,Multiple cooling system,Ice making machine,
|
Quick Details
Liquid Flow Rate:Max 50 M3/h
Maximum Working Pressure:20 bar
Weight:5-500KG Customized
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:New
Place of Origin:Jiangsu, China
Structure:micro channel aluminum heat exchanger
Dimension(L*W*H):Custimized Made
After-sales Service Provided:Engineers available to service machinery overseas, No after-sales service
Product Name:micro channel aluminum heat exchanger
Application:Heat pump
Tube type:Flat type
Fin material:Aluminum
Tube material:Aluminum
Packing:Wooden Case
Flat tube:18, 20, 26, 30, 32
Warranty:12 Months Supply Ability

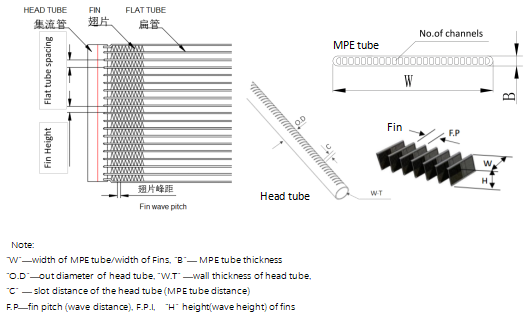

Specifics of MPE tube, fins and the head tube

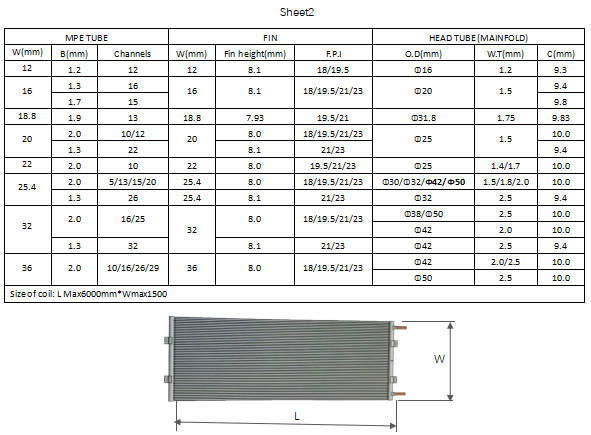

the description of the code pls refer to below drawings, we varied specifics of tube and fins refer to sheet2
The last but not least ,we can do the customized based on your drawing or offer us the specification .
