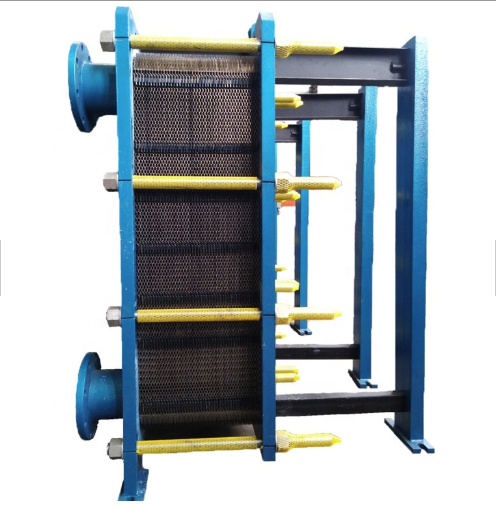

Copper / Stainless Steel Gasketed Plate And Frame Heat Exchanger for Mineral Oil
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
10-20days
Brand:
OEM/ODM
Product Description
Copper / Stainless Steel Gasketed Plate And Frame Heat Exchanger for Mineral Oil
Specification
|
Gasket material |
Temperature range (℃) | Corrosion resistance |
| NBR | -20-110 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
| HNBR | -20-165 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
| EPDM | -50~150 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
| H-EPDM | -20~165 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
| S-EPDM | -20~130 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
| Viton | -40~180 | Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc. |
| Chloroprene rubber(CR) | -50~100 | It is resistant to dilute non oxidizing acid and alkali. |
Detailed image
The advantages
| compact structure,small footprint and low installation cost |
| high thermal efficiency,saves energy |
| low leakage risk |
| Quick assembly and disassembly |
| easy to cleaning and maintance |
| not easy to block,suitable for high viscous medium |
