SUS 306 / 316 Gasketed Plate Heat Exchanger Multipurpose Home Or Commerical Use
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
10-20days
Brand:
OEM/ODM
Product Description
SUS 306 / 316 Gasketed Plate Heat Exchanger Multipurpose Home Or Commerical Use

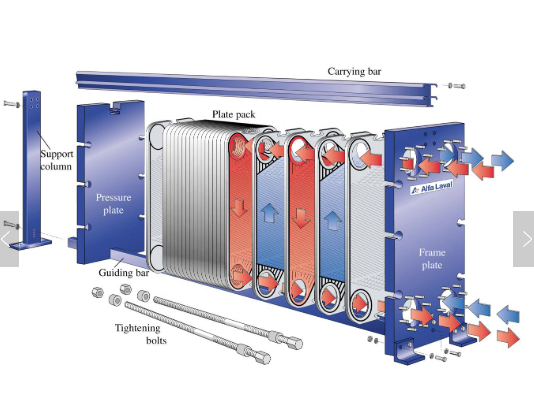

Advantages of the gasket plate heat exchanger
1, Double leakproof, prevent the different fluid to be mixed.
Different deep of the embossing can meet requirements of the different conditions.
2, No brazing, it’s convenience for dismantling, washing cleaning and repairing.
3) Characteristics
Gasketed PHE Sanitary Plate Heat Exchanger
| Model | BF100 | |
| Height, H [mm] | 1885 | 1923 |
| Width, W [mm] | 480 | 480 |
| Min standard length, L [mm] | 850 | 850 |
| Max standard length, L [mm] | 2350 | 3250 |
| Vertical port distance, VC [mm] | 1338 | 1338 |
| Horizontal port distance, HC [mm] | 225 | 225 |
| Max temperature [°C] | 160 | 160 |
| Max pressure [barg] | 10 | 16 |
| Flange size | DN100/4” | DN100/4” |
| Max. flow rate [kg/s] | 50 | |
