Steam coil Finned Tube Heat Exchanger for Drying Equipments
Steam coil Finned Tube Heat Exchanger for Drying Equipments
Specification
| Finned tube type | Diameter (mm) | Fin specific | ||
| Tube | Finned O.D | W*t | F.P | |
| Steel-steel SRZ | Φ21*2.0 | Φ41 | 10*0.4 | 5.0/6.0/8.0 |
| Steel-steel GLII | Φ21*2.0 | Φ41 | 10*0.3 | 5.0/6.0/8.0 |
| SS-AL BGL | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
| SS-SS | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
| Φ21*2.0 | Φ51 | 15*0.3 | 3.2/5.0/6.0 | |
| Φ25*2.0 | Φ45 | 10*0.3 | 3.2/5.0/6.0 | |
| Φ25*2.0 | Φ55 | 15*0.3 | 3.2/5.0/6.0 | |
| Copper-Al | Φ16*1.0 | Φ36 | 10*0.2 | 3.2/4.2/5.0/6.5 |
Product description

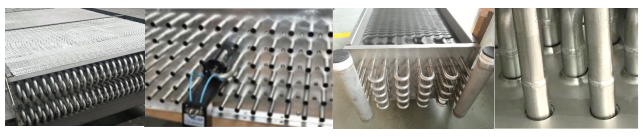

There are 2 kinds of the SS tube & fin heat exchangers, which are SS tube & Al fin type and SS tube & SS fin full SS type.
The products are applied for commercial A/C, industrial refrigeration, Gas cooler, Energy Recovery system, pollution gas recovery system, industrial dryer, many other kinds of the refrigeration systems.
The hairpin tube can be “U” bended and straight, end to be connected by return bender.

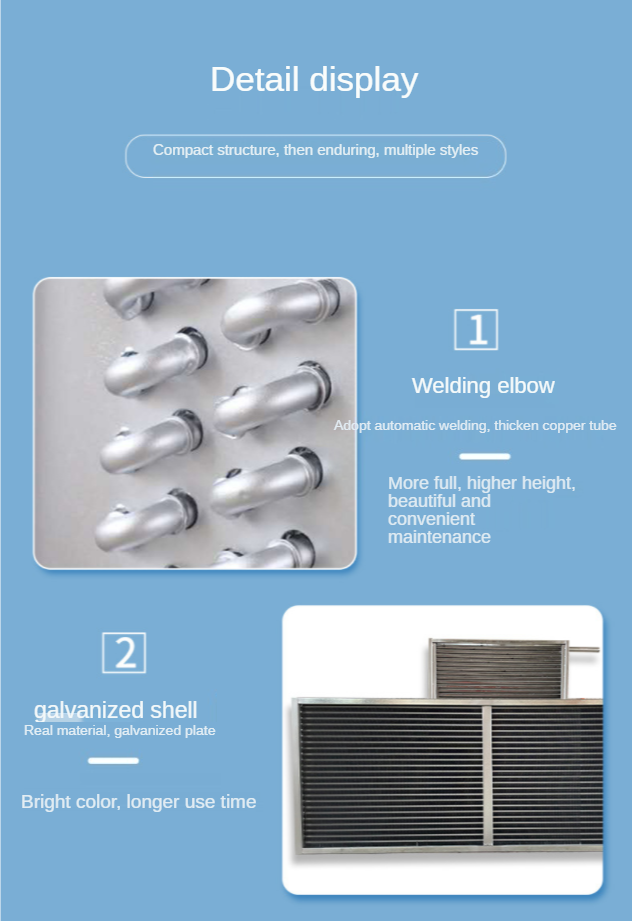

The tube expanding and tube welding technology of SS heat exchanger are specialized, SS tube welding by orbital machinery. all the connect point welded smooth, full and nice appearance.
Applications
The cost of fin tube heat exchanger is generally higher than conventional heat exchangers due to a higher level of detail required during manufacture.
However, these costs can often be outweighed by the cost saving produced by the added heat transfer.
fin tube heat exchanger are generally applied in industries where the fluids have little chances of fouling.
The delicate design as well as the thin channels in the fin tube heat exchanger make cleaning difficult or impossible.
