Industrial Refrigeration Evaporator Low Power Consumption Environmental Friendly
Refrigerator Heater Refrigerator Finned Evaporator industrial used
1, Description
The No-Frost evaporators represents a significant advance in No-Frost technology. The unique and patented design improves thermal efficiency by up to 30% and allows designers to customize air flow patterns to optimize defrost performance. The flexibility to control fin placement makes an ideal solution for new applications that are required to meet stringent energy requirements.
SOLID FIN
Bundy Refrigeration offers traditional solid fin evaporators in a wide range of sizes. These products offer ease of installation in existing applications and are ideal for systems that direct air through the large front face of the evaporator.
2, Specific Materials
Tube: Al 1070, Φ8*tmin0.6
Fins : Al 1060, t0.12～0.20
Inlet and outlet tube: copper, TP2MΦ6.0～Φ8.0*t(0.6～0.75), if lock-ring welding, it’s all Aluminum.
3, Technical Data
| Raw material | (1)Al tube:OD 8mm, wall thickness:0.6-1.0mm |
| (2)Al foil thickness: 0.13-0.2mm | |
| Application | refrigeration parts |
| Structure | (1)pull and expanded type |
| (2)slant inserting type | |
| Key process |
prepare the material→starving tube and shaping→inserting fins and enlarging tube→ leakage test→keeping pressure→packing |
| Performance | (1)Surface treated with powder coating to prevent corrosion |
| (2)Inner cleanness can meet the requirement of R134a and CFC cooling system | |
| (3) Can satisfy the cooling capability requirements of the designed refrigerator. |

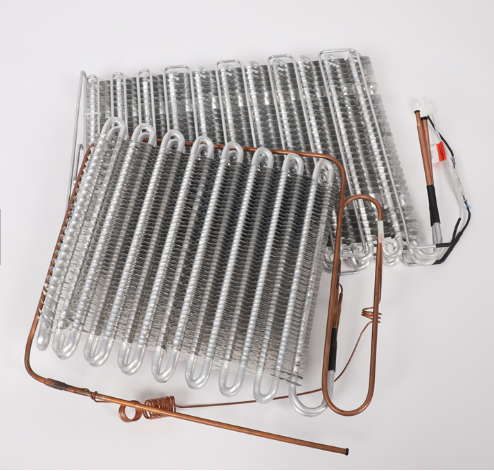

4, Evaporator Assembly
We not only provide the evaporators, but also provide the evaporator assembly, which including the suction tube assembly, heater assembly, water drain assembly.
5, Packaging & Delivery
- Selling Units:Single item
- Single package size:23X15X7 cm
- Single gross weight:1.500 kg
- Package Type:General export package: carton box with wooden pallet.
- Lead Time :
-
Quantity(Pieces)
1 - 1000
>1000
Est. Time(days)
10
To be negotiated
