High Flexibility AC Heat Exchanger , Freezer Heat Exchanger Copper Tube Aluminum Fin

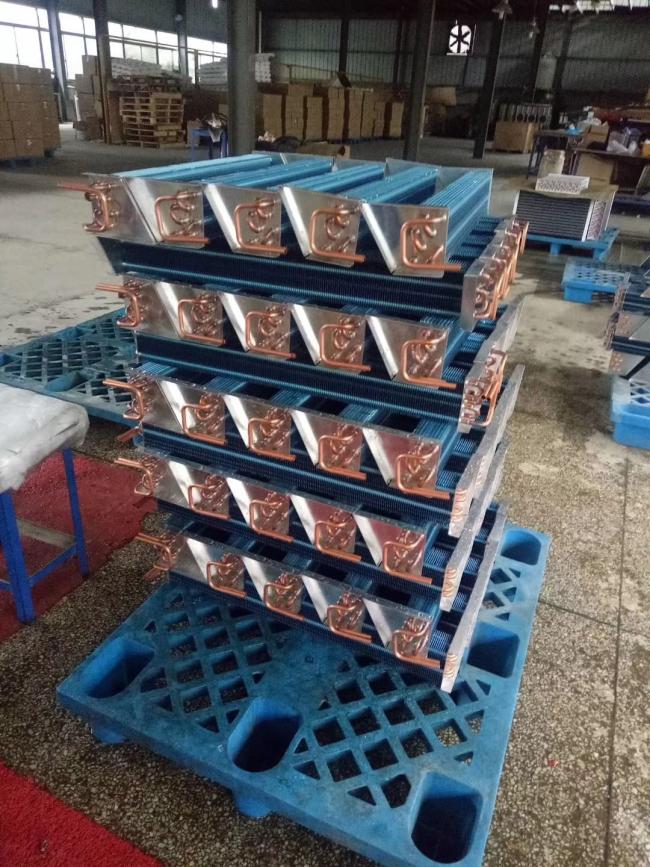

Copper tube aluminum fin Heat exchanger for A/C and freezer

Company Information

Our company  mainly focus on providing evaporators, condensers, tube components for Refrigerator, A/C and freezer etc refrigeration equipments, and provide the automatic machines for the manufactory of heat-exchanger. Also focus on providing R&D, technical innovations, Q services, business agent and project following etc services and complete solutions.
The products relates to many of the refrigeration & HVAC area, such as home appliances, traffic, transportation, industry, communication, cold storage ,data transmission, solar energy, etc.

Specifications

Chilled water cooling coil
Hot sale US market widely use on home heating
chilled water cooling coil
* Usage : For boilers, outdoor installed wood furnaces, composition of stoves
* Model:16*18*3 row
* Materials as bellow:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
* Raw material: (1)Cu tube:3/8mm", (2)Al foil thickness: 0.13-0.2mm
* Application: outdoor wood furnace parts
* Structure: (1)pull and expanded type (2)slant inserting type


Key process

prepare the material→starving tube and shaping→inserting fins

and enlarging tube→ leakage test→keeping pressure→packing

* Performance (1)Surface treated with powder coating to prevent corrosion

(2)inner cleanness

(3) Can satisfy the cooling capability requirements of the designed refrigerator.

*

This new styleChilled water cooling coil can be easily installed by just slipping it into the plenum and attaching with self threading screws. You will not need any special tools to install.

This unit is easier to install than others on the market because it attachs from the front instead of the side.

The Chilled water cooling coil can also be used as a stand alone heat source by simply attaching

a fan or squirrel cage to one side of the unit. They can be installed in either the hot air side or

the cold air return of a furnace. Please note that if installed in the cold air return you will need to install

a 3 way zone valve in order for the fan to operate properly.

Supply Ability

Supply Ability:1000 Set/Sets per Month

Packaging & Delivery

Packaging Details:pallet, wooden box
Port:Shanghai

Shipping:

Support Sea freight

Lead Time:

Quantity(Units)	1 - 2500	>2500
Est. Time(days)	25	Negotiable
